EXT102EP-OT

100Mbps dual port outdoor POE extender

• 1. PoE Power Expansion Maximum 120 W PoE input. OUT1 delivers up to 90 W and OUT2 up to 30 W. Compatible with IEEE802.3af/at/bt powered devices; also supports passive 37 57 V DC high power input.
• 2. Long Reach Transmission When working with a matching LD type transmitter under LD mode, Cat6 cable supports up to 500 m at 100 Mbps and up to 800 m at 10 Mbps, solving long distance outdoor cabling challenges.
• 3. Outdoor Hardened Design IP67 waterproof aluminum die cast housing for harsh outdoor environments. 6 KV lightning protection and wide operating temperature range from 40℃ to +80℃.
• 4. Status Indication Multiple LED indicators show PoE power, link status, speed and PoEdog operation status for convenient on site commissioning and fault diagnosis.
• 5. Flexible Installation Supports both desktop placement and wall mounting to fit various installation scenarios.

PD48PSE-GL-24V

Active to passive POE converter

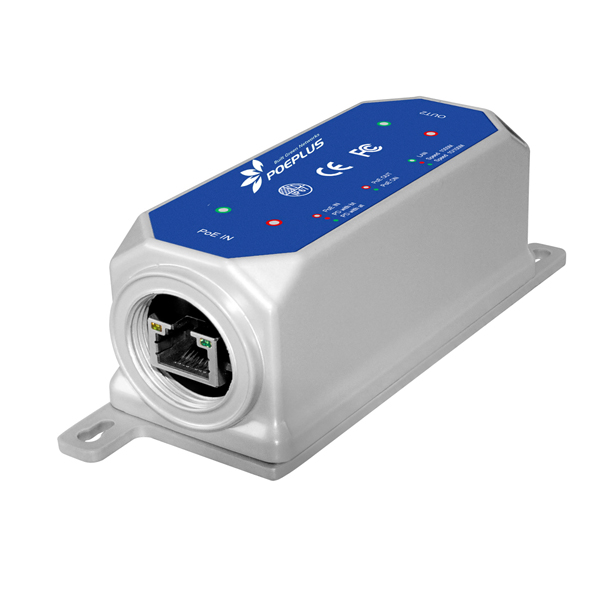

EXT101GTP-OT

Multi-gigabit 2.5Gbps POE extender

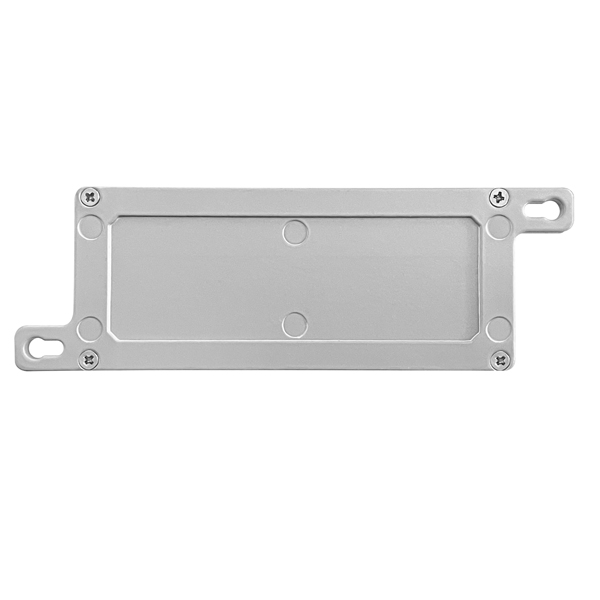

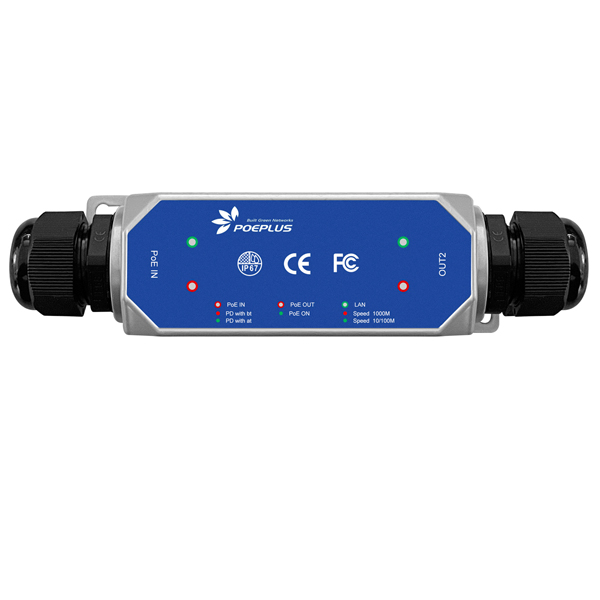

EXT101GP-OT

Gigabit single port POE extender

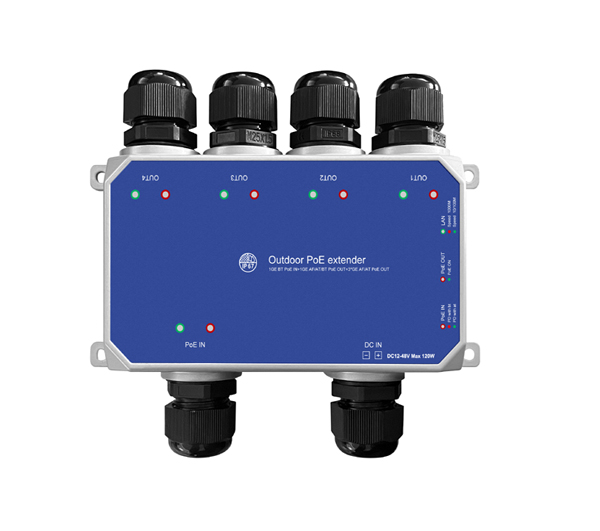

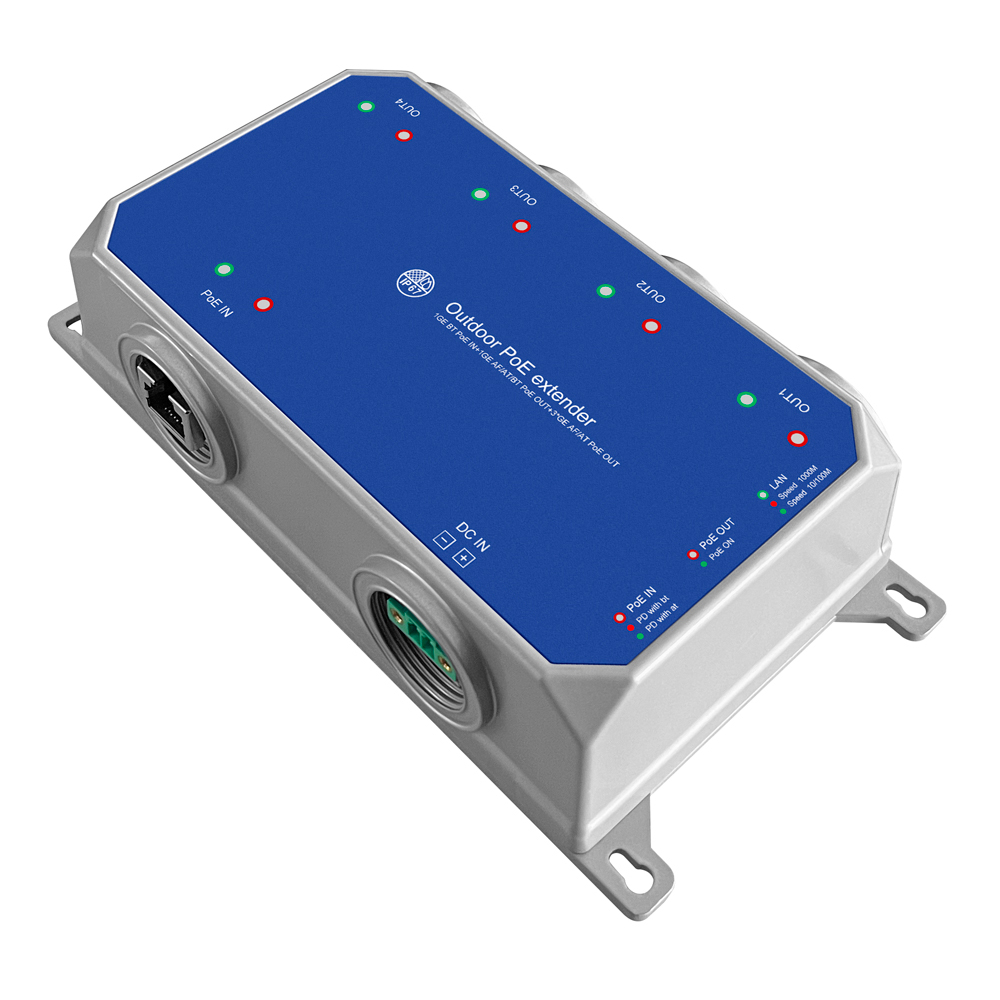

EXT105GP-OT-V2

IP67 5 Ports Gigabit POE Switch Extender 12-48Vdc Input

• Gigabit or 100Mbps available
• 4 Ports POE output （1*bt 90w+3*at 30w）
• Support POE input and DC 12-48V input max 120w
• IP68 Nylon waterproof joint connector
• IP67 Aluminum die-casting body

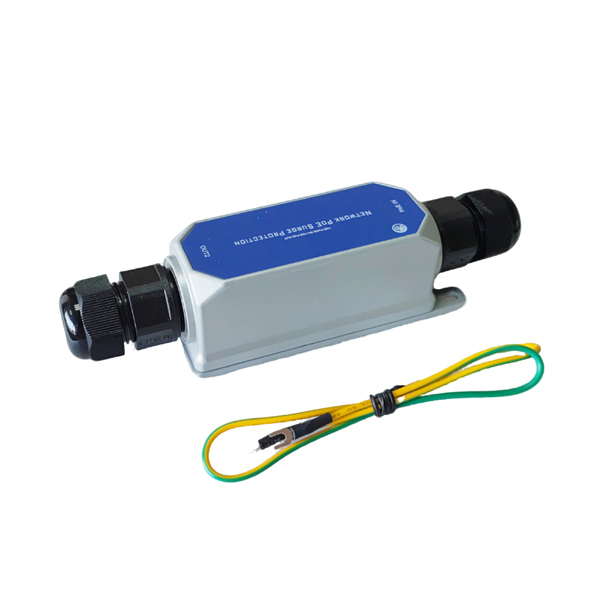

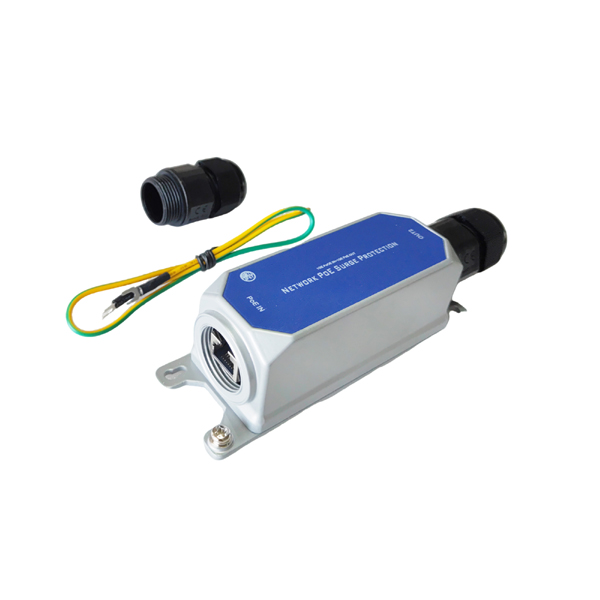

A-GE-POE-48V-OT

Outdoor 2.5Gbe POE surge protector

PD60（90）W-GL-OT

IP67 60w/90W waterproof outdoor POE splitter

• 12V 5A and 24V 2.5A available
• Gigabit or 10Gbe available
• IP68 Nylon waterproof joint
• IP67 Aluminum die-casting body
• Supports Passive DC37-57V MAX 120W in

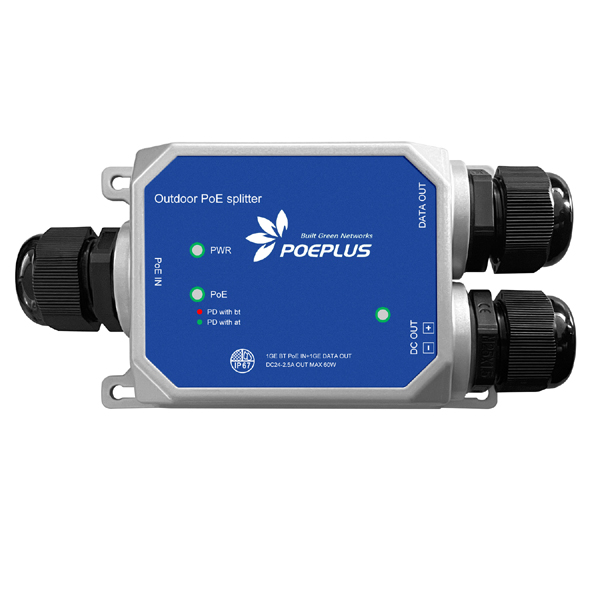

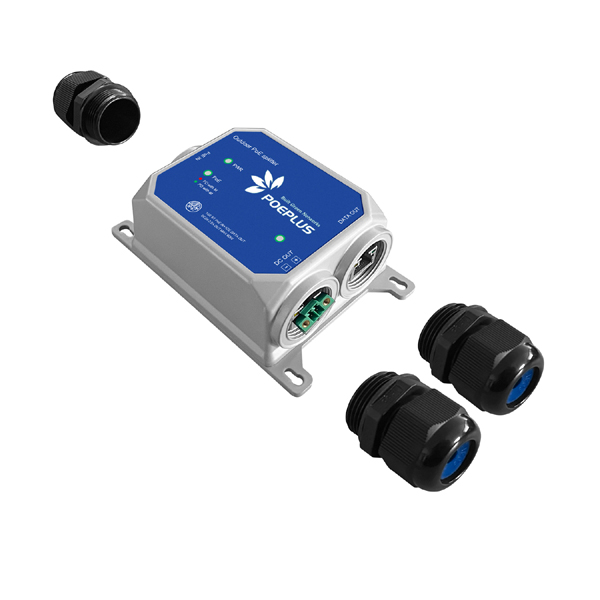

PD90W-GL-OT

IP67 waterproof outdoor POE splitter

• Gigabit or 10Gbe available
• 12V 7.5A max 90w output
• 802.3bt max 120w POE input
• IP67 waterproof outdoor application

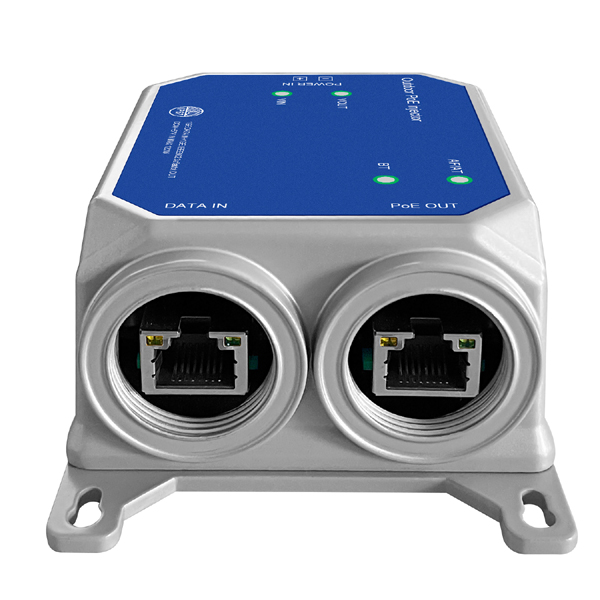

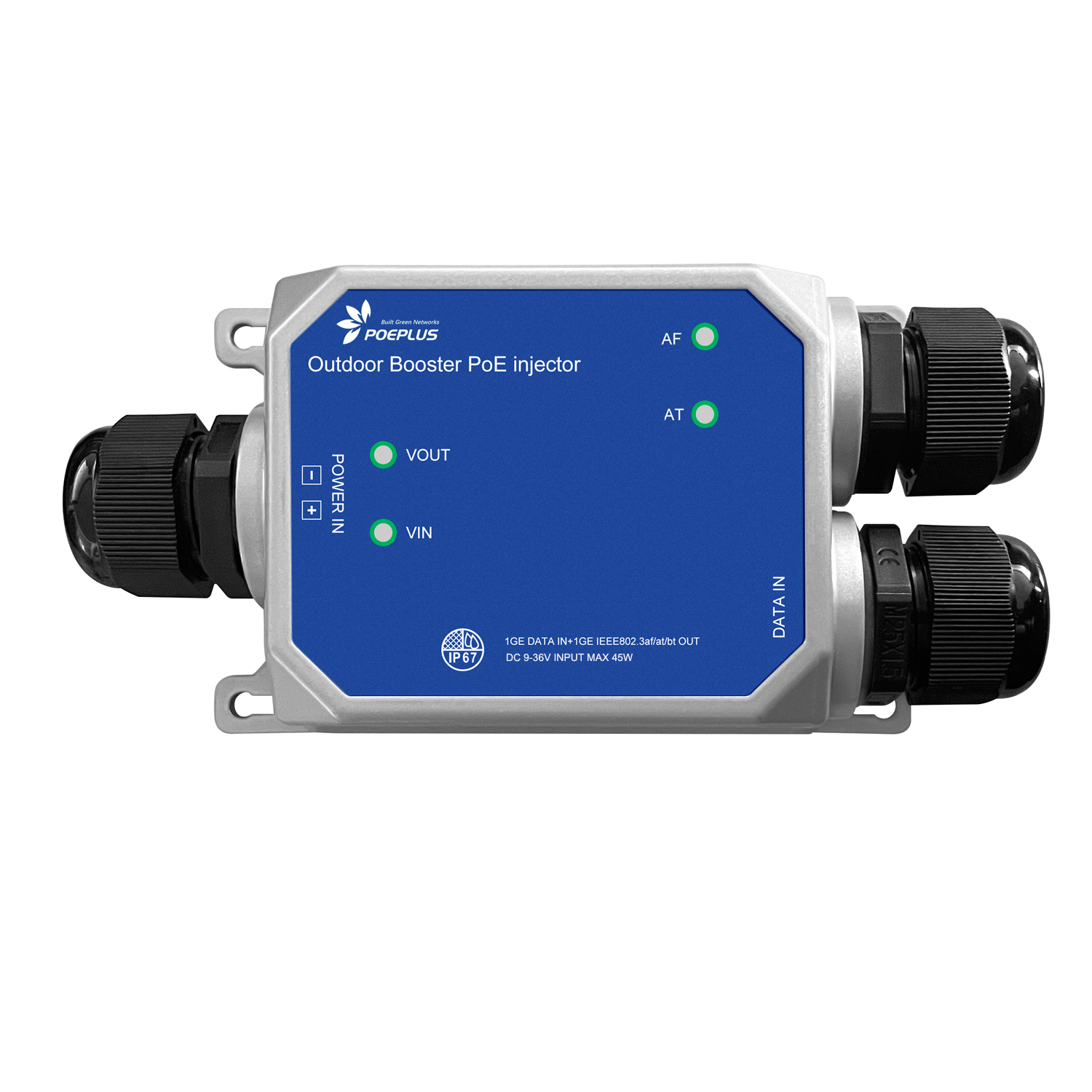

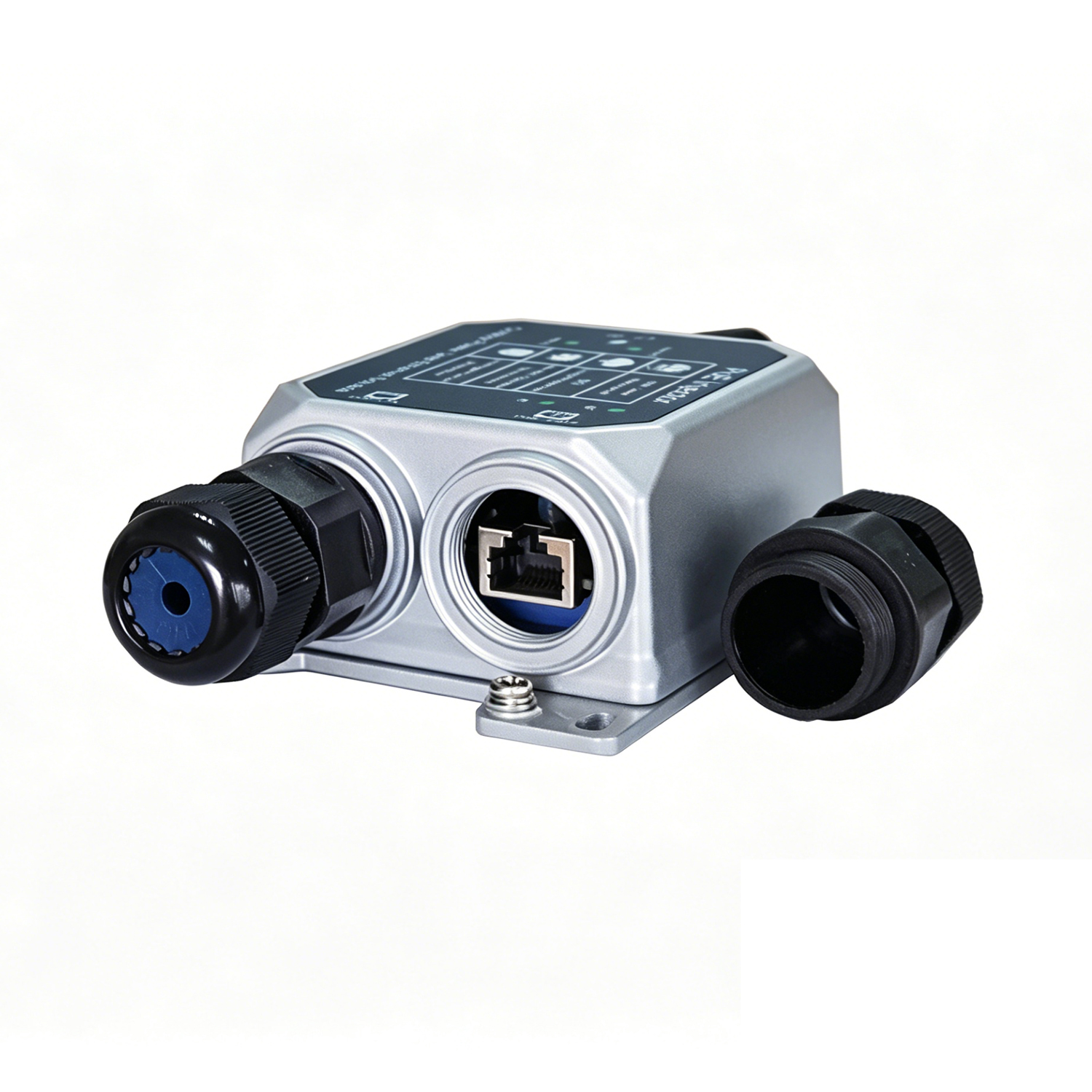

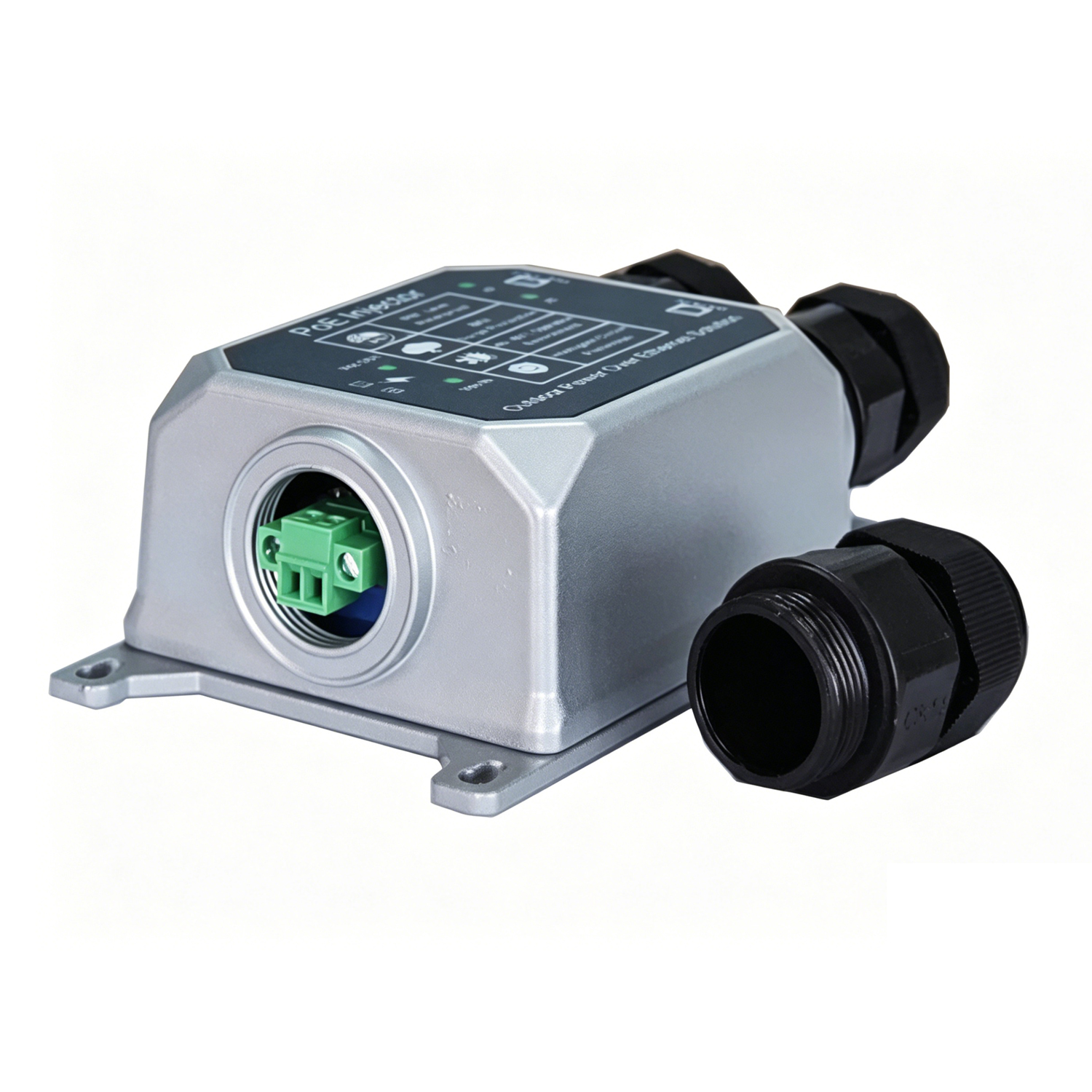

PSE30W-OT-V2

9-36Vdc input max 30w output boost POE injector

• CB and KC certified
• 9-36Vdc input max 30w output
• 2.5Gbps bandwidth
• IP68 Nylon waterproof joint connector
• Aluminum die-casting body

EXT102GP-AC

3 Ports IP67 waterproof Outdoor POE Switch/Extender（AC+DC +POE input）

• Versatile Installation & Compliance：desktop and wall mounted
• High Speed Network Performance
• Comprehensive PoE Support
• Flexible Power Input Options AC+DC+POE input
• Rugged & Weatherproof Design

PSE60W-AC-OT

AC input outdoor waterproof poe injector

• Plug and play
• industrial grade design
• 802.3at/bt compatible
• IP67 grade outdoor waterproof
• AC+DC input

EXT105GP-OT

4 Ports outdoor waterproof POE extender

• With DC input， it can works as POE Switch
• OUT1 Supports IEEE802.3af/at/bt, max 90W PoE out
• OUT2-4 Supports IEEE802.3af/at, max 30W PoE out
• Supports IEEE802.3af/at/bt, max 120W PoE in
• Aluminum die-casting body

EXT102GP-OT

Dual port waterproof gigabit POE extender

EXT101EP-OT

10/100Mbps IP67 outdoor POE extender

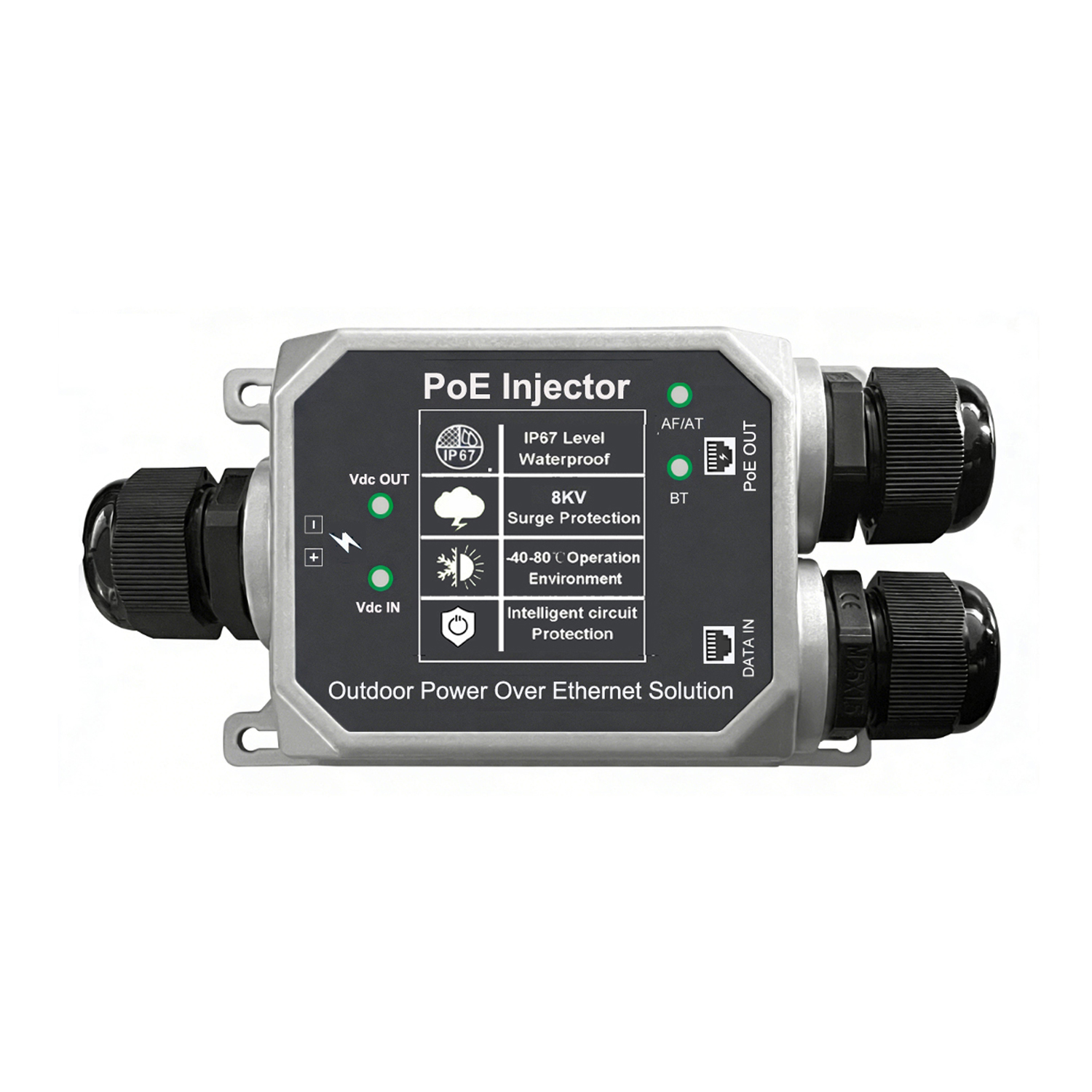

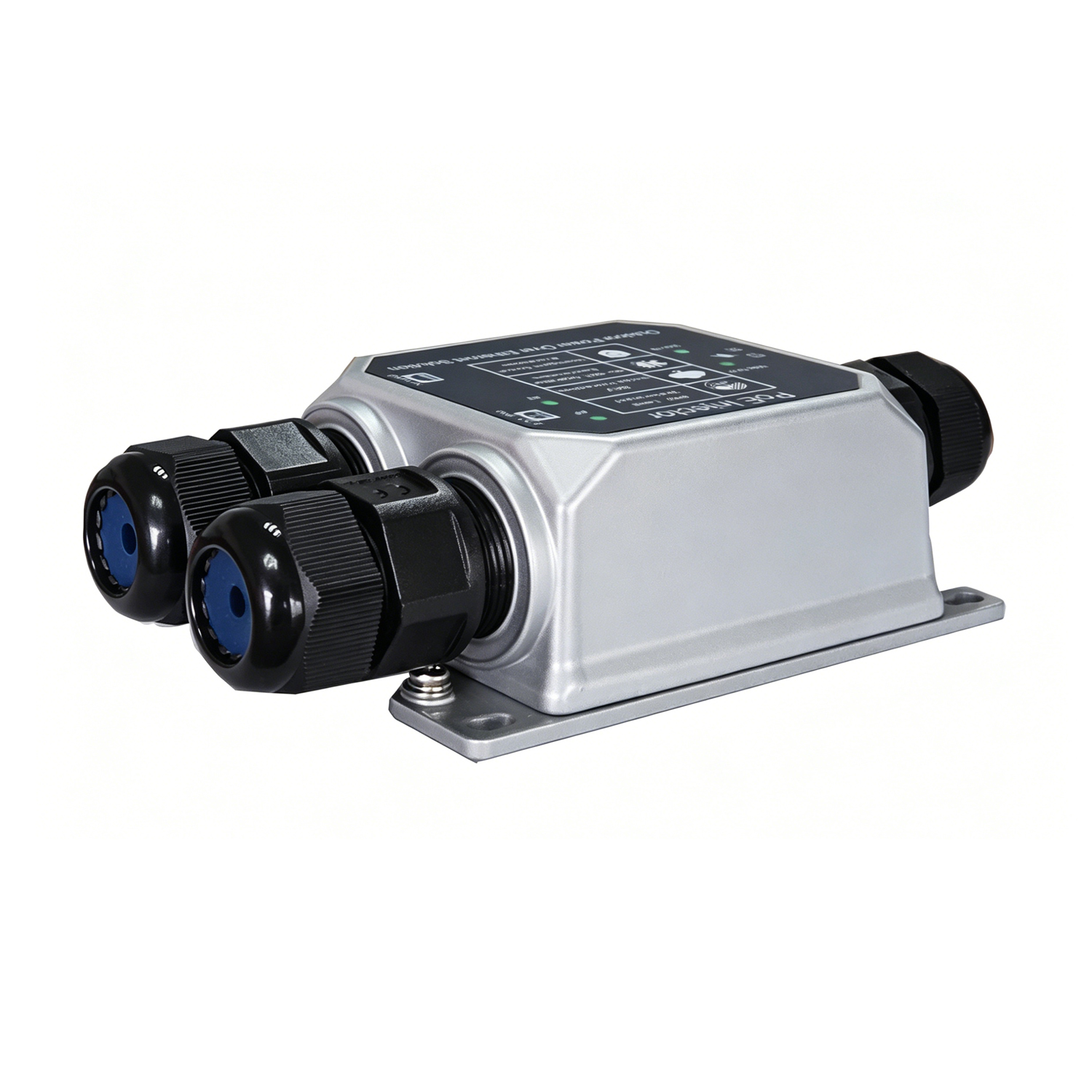

PSE90W-OT-10G-V2

12-57Vdc input 10G Outdoor POE injector

• 6KV surge protection
• industrial grade -40℃ to 80℃ working temperature
• wide range DC input 12-57V
• POE BT 90W
• waterproof IP67

S3512-8P2T(S)-OT

10 Ports outdoor IP65 POE Switch

• 6KV lightning protect.
• Built-in high lever power supply max 400w;
• Metal case IP65 protect level;
• Rich software feature;
• POE watchdog function ;
