Model List

Technical Specifications

Hardware Interfaces

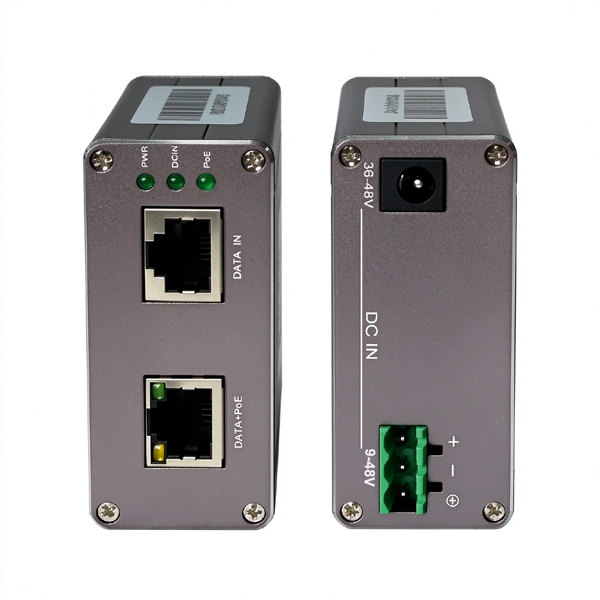

EC350-B(at)

· 1×10/100/1000Mbps RJ45 (Data IN)

· 1×10/100/1000Mbps RJ45 (PoE OUT)

· 1×3-pin 5.08mm DC terminal block

· 1×DC2.0 power jack

· 1×DIP switch for power output selection

EC350-A(at)

· 1×10/100/1000/2500Mbps RJ45 (Data IN)

· 1×10/100/1000/2500Mbps RJ45 (PoE OUT)

· 1×3-pin 5.08mm DC terminal block

· 1×DC2.0 power jack

· 1×DIP switch for power output selection

DC Power Input

· DC2.0 jack: 36-48V, Max 5A

· 3-pin 5.08mm terminal block: 9-48V, Max 10A

PoE Parameters

· PoE Standard: IEEE 802.3at, Class 4

· Max PoE Output Power: 30W

· PoE Output: 48VDC, up to 30W

· PoE Pin Assignment: 1/2(+), 3/6(-)

Supported Network Standards

EC350-B(at)

· IEEE 802.3 10BASE-T

· IEEE 802.3i 10BASE-T

· IEEE 802.3u 100BASE-TX

· IEEE 802.3x FullDuplex Flow Control

· IEEE 802.3ab 1000BASE-T

EC350-A(at)

· IEEE 802.3 10BASE-T

· IEEE 802.3i 10BASE-T

· IEEE 802.3u 100BASE-TX

· IEEE 802.3x FullDuplex Flow Control

· IEEE 802.3ab 1000BASE-T

· IEEE 802.3bz 2.5GBASE-T

LED Indicators

· PWR: Power status indicator

· PoE: PoE output status indicator

· DCIN: DC2.0 input status indicator

Transmission

Environmental

· Operating Temperature: -40℃ ~ +75℃

· Storage Temperature: -40℃ ~ +85℃

· Relative Humidity: 5%-95% noncondensing

· Cooling: Fanless, natural convection

· IP Grade: IP40

· MTBF: 100 000 hours

EMC & Surge Protection

· Power surge: IEC 61000-4-5, 4KV/2KV (8/20µs)

· Ethernet port surge: IEC 61000-4-5, 4KV/2KV (10/700µs)

· ESD: IEC 61000-4-2, 8KV contact /15KV air-discharge

Mechanical

· Dimension: 80 × 70 × 32 mm

· Package dimension: 120 × 100 × 59 mm

· Installation: DIN-rail / Wall mount

· Unit Weight: 0.3 kg

Packing

· Contents: PoE injector, user manual, mounting accessories

· Power adapter: Not included

· Carton: 80 PCS / CTN; Carton size:510×430×320 mm; Gross weight:25 kg

Warranty

1-year limited warranty

Custom Model Options

1. EC350-B(at)customization

PoE injector, 2×10/100/1000Mbps RJ45, 48V PoE output, max 30W (IEEE802.3at Class4). DC input 9-48V. Operating temp:-20~+65℃. DIN-rail / wall-mountable.

1. EC350-A(at)-customization

PoE injector, 2×10/100/1000/2500Mbps RJ45, 48V PoE output, max 30W (IEEE802.3at Class4). DC input 9-48V. Operating temp:-20~+65℃. DIN-rail / wall-mountable.
