S604GP-2S-OT-150W Overview

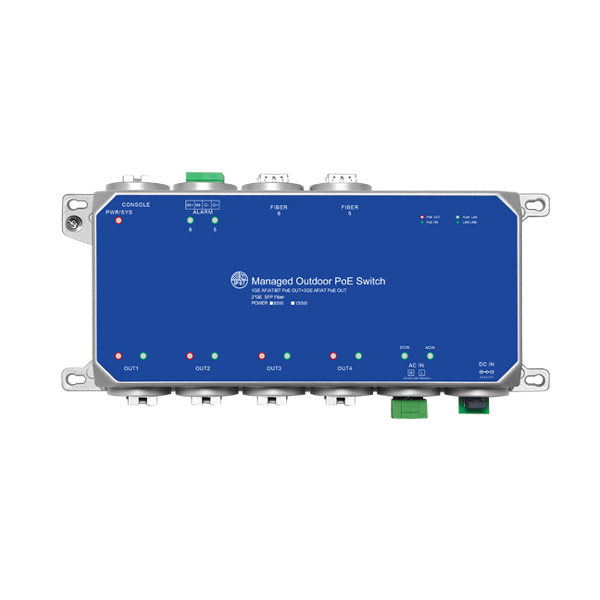

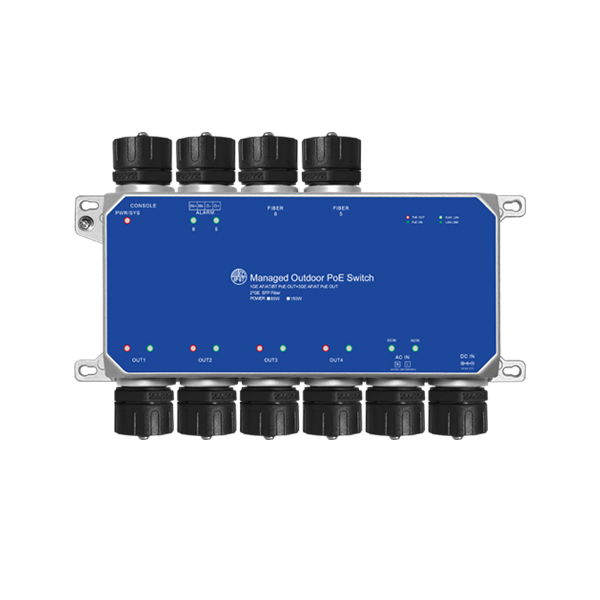

S604GP-2S-OT-150W is an industrial grade gigabit outdoor waterproof PoE switch with IP67 protection rating. Adopting aluminum die casting housing and nylon waterproof connectors, it adapts to harsh outdoor working environments with wide operating temperature range and 6KV lightning surge protection. This switch provides 4×Gigabit PoE RJ45 ports and 2×1G SFP fiber slots. Port1 supports IEEE802.3bt up to 90 W PoE output while Port2 4 support IEEE802.3af/at up to 30 W each. Built in POE WATCHDOG function automatically detects and resets faulty PoE powered devices. It supports long distance Ethernet transmission and dual AC DC power input, ideal for outdoor surveillance, remote wireless AP deployment and other outdoor network scenarios.

• IP67 Outdoor Waterproof Enclosure

Aluminum die cast body with nylon waterproof joints; supports cable diameter Φ4 8 mm. Suitable for all weather outdoor deployment.

• Rich Gigabit Port Configuration

• 4×10/100/1000Base TX RJ45 ports with PoE output
• 2×1000M SFP slots, compatible with 1G single mode / multi mode SFP modules, max transmission distance up to 120 km (subject to SFP module specification)

• Multi standard PoE Power Supply

• Port1: IEEE802.3af/at/bt, maximum 90 W PoE output
• Port2 4: IEEE802.3af/at, maximum 30 W PoE output
• PoE pin assignment: bt mode 12+,45+,36 ,78 ; af/at mode 12+,36
• Total PoE power budget: max 155 W (AC input built in power)

• Intelligent PoE Watchdog

• Automatically detects PoE powered terminals, executes power cycle reset for fault devices to restore network connection without manual intervention.

• Long distance Transmission Capability

• 10BASE T: up to 250 m over Cat3/4/5 UTP cable
• 100BASE TX: up to 150 m over Cat5 or higher UTP cable
• 1000BASE TX: up to 100 m over Cat6 or higher UTP cable
• Supports port isolation for network security.

• High performance Switching Capacity

• Switching bandwidth: 12 Gbps
• Packet forwarding rate: 8.928 Mpps
• MAC address table: 2 K entries
• Packet buffer: 2 M

• Flexible Dual Power Input

• Built in AC power: 100 240 Vac, 50 60 Hz, 1.0 A, max 155 W
• DCIN (DC5525): DC 12 57 V; max 5 W without PoE load, max 180 W for PoE application

• Harsh Environment Adaptability & Surge Protection

• Operating temperature:40℃ ~ +80℃; humidity 5% 90% RH non condensing
• Storage temperature:40℃ ~ +90℃; humidity 5% 95% RH non condensing
• 6 KV (8/20μs) lightning protection
• Installation: desktop or wall mount deployment

S604GP-2S-OT-150W Specification

LED Status Indicators

PoE‑out LED, LAN link LED, internal POEDOG LED, ACIN & DCIN power LED for real‑time device status monitoring.

Physical & Certification

- Main dimension(L×W×H): 255×150×48 mm; packing size:305×265×63 mm
- Net weight:1.12 kg; Gross weight:1.38 kg
- Certifications: CE‑EMC EN55032, CE‑LVD EN62368, FCC Part15 Class B, RoHS
- Warranty: 1‑year whole‑device warranty (excluding accessories)

Technical Specifications Table

Item	Specification
Model	S604GP-2S-OT-150W
Product Type	Gigabit IP67 Outdoor Waterproof PoE Switch
Housing Material	Aluminum die‑casting body, Nylon waterproof joint
IP Rating	IP67
Supported Cable Diameter	Φ4‑8 mm
Fixed Ports	4×10/100/1000Base‑TX(Data+PoE); 2×1000M SFP
PoE Output	Port1: IEEE802.3af/at/bt, max 90W Port2‑4: IEEE802.3af/at, max 30W
PoE Pinout	Bt:12+,45+,36‑,78‑; Af/at:12+,36‑
Functions	Port Isolation, Long‑distance transmission, POEDOG
Switch Bandwidth	12 Gbps
Packet Forwarding Rate	8.928 Mpps
MAC Address Table	2 K
Packet Buffer	2 M
UTP Transmission Distance	10BASE‑T ≤250 m;100BASE‑TX ≤150 m;1000BASE‑TX ≤100 m
SFP Fiber Distance	Max ≤120 km (depends on optical module)
LED Indicators	POE out, LAN link, POEDOG, ACIN, DCIN
Power Supply	AC:100‑240Vac 50‑60Hz 1.0A Max155W DCIN:DC12‑57V(no‑PoE max5W); DC44‑57V(PoE max180W)
Operating Condition	‑40～+80℃, 5%‑90%RH Non‑coagulation
Storage Condition	‑40～+90℃,5%‑95%RH Non‑coagulation
Dimension(LWH)	Main body:25515048mm; Packing:30526563mm
Weight	N.W:1.12kg; G.W:1.38kg
Lightning Protection	6KV 8/20us
Installation	Desktop, Wall mounting
Certificates	CE‑EMC EN55032, CE‑LVD EN62368, FCC Part15 Class B, RoHS
Warranty	1‑year for whole device (accessories excluded)
