EXT102EP-OT

100Mbps dual port outdoor POE extender

1. PoE Power Expansion Maximum 120 W PoE input. OUT1 delivers up to 90 W and OUT2 up to 30 W. Compatible with IEEE802.3af/at/bt powered devices; also supports passive 37 57 V DC high power input.
2. Long Reach Transmission When working with a matching LD type transmitter under LD mode, Cat6 cable supports up to 500 m at 100 Mbps and up to 800 m at 10 Mbps, solving long distance outdoor cabling challenges.
3. Outdoor Hardened Design IP67 waterproof aluminum die cast housing for harsh outdoor environments. 6 KV lightning protection and wide operating temperature range from 40℃ to +80℃.
4. Status Indication Multiple LED indicators show PoE power, link status, speed and PoEdog operation status for convenient on site commissioning and fault diagnosis.
5. Flexible Installation Supports both desktop placement and wall mounting to fit various installation scenarios.

EXT102EP-OT Overview

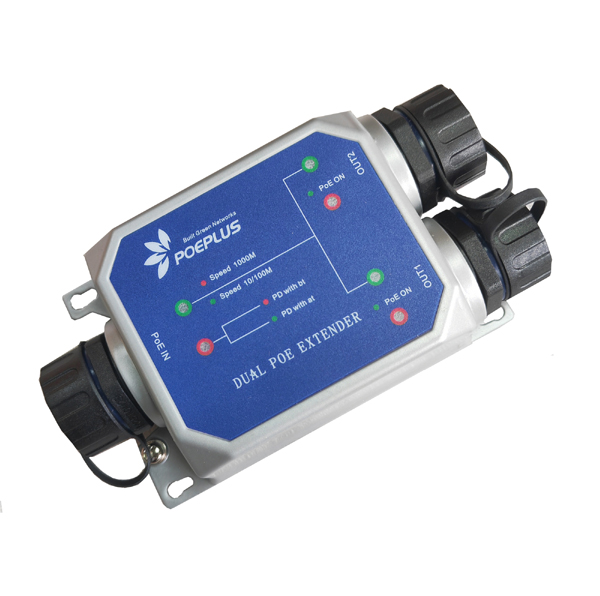

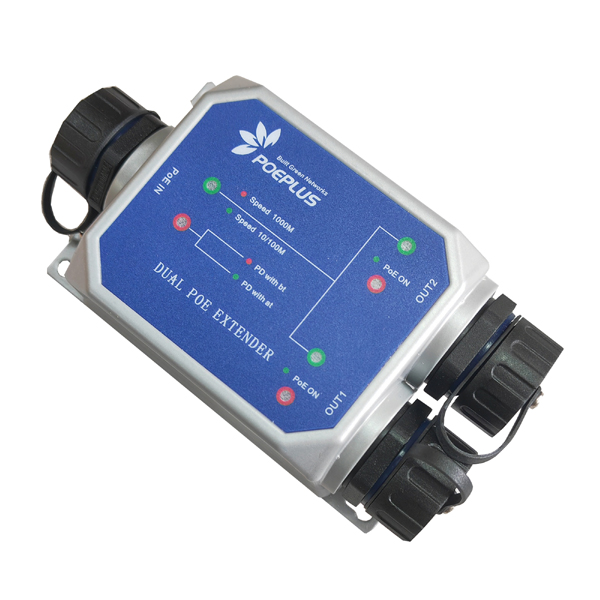

The EXT102EP OT is an IP67 outdoor long distance waterproof PoE extender with aluminum die casting housing and nylon waterproof connectors. Designed for outdoor surveillance and outdoor network deployments, it accepts PoE input or passive DC input and provides 2 PoE output ports for simultaneous long distance transmission of data and PoE power. Equipped with lightning protection, it is built to operate under wide temperature outdoor conditions.

EXT102EP-OT Specification

Item	Parameter
Model	EXT102EP‑OT
Product Name	Long‑distance IP67 Outdoor Waterproof PoE Extender
Material	Aluminum die‑casting case, Nylon waterproof connector
Waterproof Rating	IP67
Supported Cable Diameter	Φ4‑8mm
Ports	1 × LD 10/100Base‑TX Input 2 × 10/100Base‑TX Output
PoE Input	Supports IEEE802.3af/at/bt, max 120W PoE input Supports Passive DC 37‑57V input, max 120W
PoE Input Pinout	12+, 45+; 36‑, 78‑
PoE Output	OUT1: IEEE802.3af/at/bt compliant, max 90W PoE output OUT2: IEEE802.3af/at compliant, max 30W PoE output
PoE Output Pinout	Bt mode: 12+, 45+, 36‑, 78‑ Af/at mode: 12+, 36‑
Bandwidth	1Gbps
Packet Forwarding Rate	0.75 Mpps
MAC Address Table	1K
Buffer Memory	768K
PoE Input Transmission Distance	Standard Mode 10BASE‑T: Cat3/4/5 UTP ≤250 m 100BASE‑TX: Cat5 or higher UTP ≤150 m LD Mode (LD‑type transmitter required) 10BASE‑T: Cat5 or higher UTP ≤800 m 100BASE‑TX: Cat6 or higher UTP ≤500 m
PoE Output Transmission Distance	10BASE‑T: Cat3/4/5 UTP ≤250 m 100BASE‑TX: Cat5 or higher UTP ≤150 m
LED Indicators	PoE‑IN: LED for bt / af/at status PoE‑OUT: Power output status LED Input Port: LAN Link LED, LAN 1G Speed LED Output Port: LAN Link LED PoEdog: Built‑in status LED
Operating Temperature & Humidity	-40℃ ~ +80℃; 5%‑90% RH, non‑condensing
Storage Temperature & Humidity	-40℃ ~ +90℃; 5%‑95% RH, non‑condensing
Product Dimension (L×W×H)	150 × 77 × 43 mm
Package Dimension (L×W×H)	160 × 85 × 47 mm
Net Weight / Gross Weight	0.27 kg / 0.31 kg
Lightning Protection	6KV 8/20μs
Installation	Desktop, Wall‑mount
Certifications	CE‑EMC EN55032; CE‑LVD EN62368; FCC Part 15 Class B; RoHS
Warranty	1‑year warranty for main unit (accessories excluded)
