S600GP-1BTS

Solar Energy Unmanaged Network POE Switch

Easy operation
Low power consumption design, no fan mute design, cooling hole on the side,
Solar controller Integrated to manage battery charging and discharging functions
1*60w POE++ port，2*802.3af/at max 30w ports，2*48V/24Vadaptive POE interface
All gigabit interface, up to 12G backboard bandwidth

S600GP-1BTS Overview

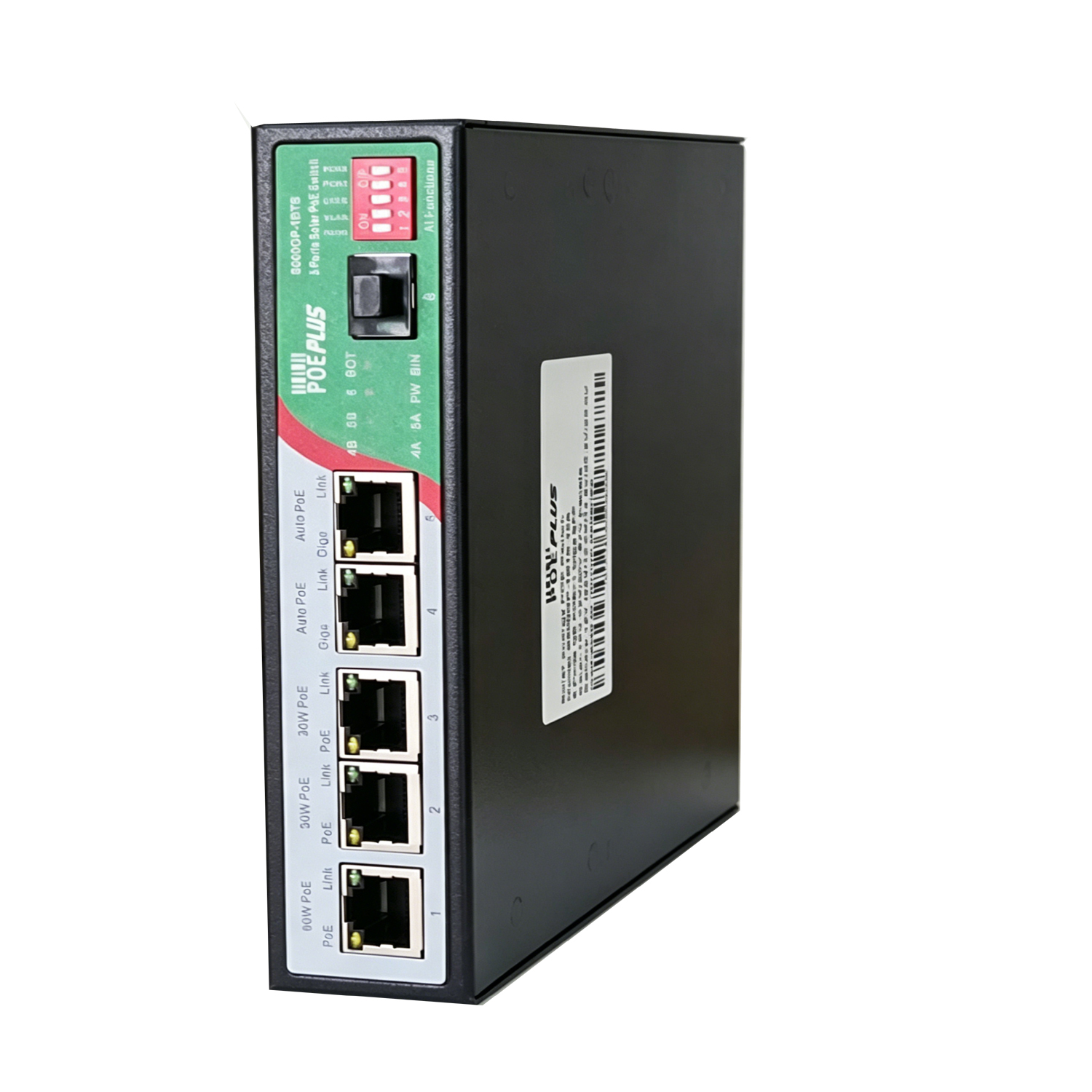

S600GP-1BTS is an all-gigabit unmanaged solar POE network switch, providing 5 POE ports and 1 SFP fiber interface. Among them, port 1 follows the poe ++ protocol and supports maximum 60w high power POE output. Port 2-3are the active POE output port and supports PD equipment of 802.3af/at. Port 4-5 adopts the exclusive POE power supply scheme of our company, and adaptively supports 24V/48V passive PD equipment and standard active 802.3af/at PD equipment, with maximum output of 25w. S600P-1TS solar energy switch meets the application requirements of surveillance, wireless transmission and data acquisition in the field environment. This Switch integrates solar controller, inverter, battery protection function, POE output stability. Abundant indicator light can detect battery power, charging and discharging status, POE output voltage and switch working status.

S600GP-1BTS Specification

Network interface：

All gigabit interface, up to 12G backboard bandwidth

1*60w POE++ port

2*802.3af/at max 30w ports

2*48V/24Vadaptive POE interface，support active POE and passive PD，max 25w

1*1.25G SFP fiber port，up to 80km long transmission

Solar function：

Solar controller Integrated to manage battery charging and discharging functions.

Integrated inverter function

Indicator help detect battery charge and discharge status.

Stable and reliable

Low power consumption design, no fan mute design, cooling hole on the side,

Industrial components,

Solar controller Integrated

100% aging test.

Easy operation

Plug and play

Users can easily understand the working status of the device through power indicator (PWR), port status indicator (Link/POEt), battery status indicator (BOT.BIN), system status indicator (CPU), etc.

Specification

Model number	S600GP-1BTS
POE++ port	1*10/100/1000Mbps POE++ up to 60w output
802.3af/at active POE	2*10/100/1000Mbps 802.3af/at ports up to 30w
Active/passive POE	2*10/100/1000Mbps 802.3af/at/24V/48V auto adaptive up to 25w
Fiber port	1*1000M SFP fiber port up to 80km long transmission
Exchange mechanism	Store-and-forward
Bandwidth	12G
MAC table	2K
Enviromental Parameter	Work temp.：-20℃～+65℃ Store temp. ：-40℃～+70℃
Enviromental Parameter	· Work Hump. ：10%～90% RH non-condensing · Store Hump.：5%～90% RH non-condensing
POE parameter	110/100/1000Mbps POE++ 210/100/1000Mbps 802.3af/at 2*10/100/1000Mbps 802.3af/at/24V/48V Passive
Charge-discharge function	Integrated automatic charging and discharging function Integrated battery protection function Integrated solar controller output over voltage, over current protection function
Battery Parameter	Support 12V&24V Lead-acid batteries and lithium batteries battery Max 12V 30AH
Power input	Support 12V/24V solar panel Support DC 12-30V input
Protocol	IEEE 802.3 / IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX / IEEE 802.3u 1000BASE-TX IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3x
Bandwidth	Ethernet half duplex 10Mbps，duplex 20Mbps Fast Ethernet half duplex 100Mbps, duplex 200Mbps Gbit Ethernet half 1000Mbps，duplex 2000Mbps
Transmission medium	10Base-T: 2 pairs cat3 or above (≤100m) 100Base-TX: 4 pairs cat5 or above（≤100m) 1000Base-TX: 4 pairs cat5e or above (≤100m) 1000Base-SX: 62.5μm/50μm MMF，max 0.55km transmission 1000Base-LX:9μm SMF，max 80km long transmission
Physical parameter	Product size：158mm142mm35mm（LWH） Package size：300mm175mm100mm（LWH） Weight :0.8kg
