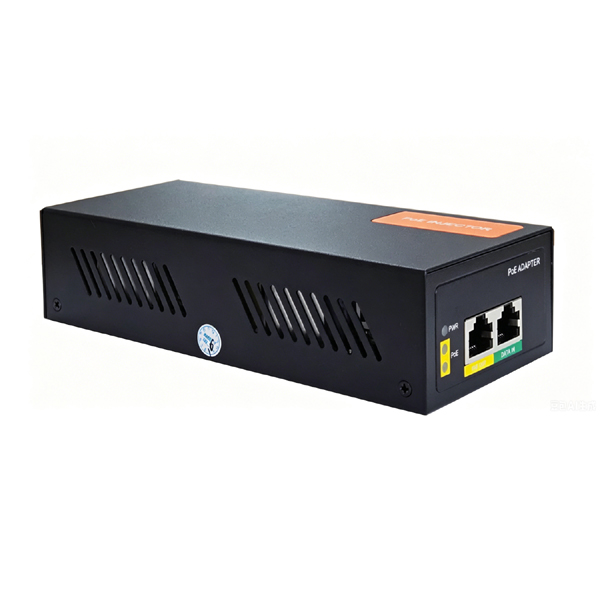

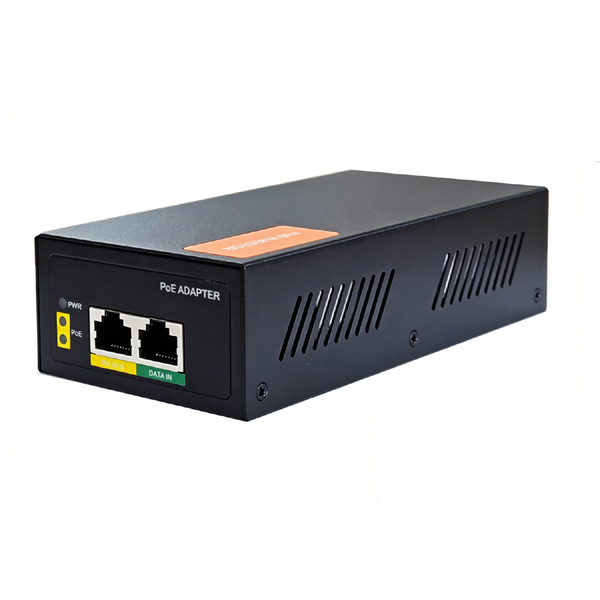

PSE5500 Series 10Gbe 802.3bt POE injector
1. Product Overview
The PSE5500 series are 1G/2.5G/10Gbps high‑power Ethernet PoE injectors designed for industrial and high‑power PoE applications.
They feature dual 10M/100M/1G/2.5G/10Gbps auto‑sensing RJ45 ports and wall‑mounted installation, with high reliability for harsh environments.
Models:
PSE5560XGT: Max 60W (IEEE802.3bt Type3)
PSE5590XGT: Max 90W (IEEE802.3bt Type4)
2. Key Specifications
2.1 Electrical Specifications
|
Item |
Specification |
|
AC Input |
100–240V AC, 50/60Hz |
|
PoE Output Voltage |
54V DC |
|
PoE Standard |
IEEE802.3af / 802.3at / 802.3bt |
|
PoE Power (PSE5560XGT) |
Max 60W (Type3) |
|
PoE Power (PSE5590XGT) |
Max 90W (Type4) |
|
PoE Pin Assignment |
1245(+), 3678(–) |
|
DIP Switch |
N/A |
2.2 Port & Network
|
Item |
Specification |
|
Data Ports |
1× Data IN (RJ45) 1× PoE OUT (RJ45) |
|
Port Speed |
10M/100M/1G/2.5G/10Gbps auto-sensing |
|
Supported Protocols |
IEEE802.3 (10BASE-T) IEEE802.3i (10BASE-T) IEEE802.3u (100BASE-TX) IEEE802.3x (Flow Control) IEEE802.3ab (1000BASE-T) IEEE802.3bz (2.5GBASE-T) IEEE802.3an (10GBASE-T) |
|
Transmission Distance |
2.5G/10G: 0–100m (Cat6a/Cat7) 10/100/1000M: 0–100m (Cat5e/Cat6) |
|
Cabling Medium |
10BASE‑T: Cat3/4/5 or higher 100/1000M: Cat5/5e/6 or higher 2.5G/10G: Cat6a/7 or higher |
2.3 Environmental & Mechanical
|
Item |
Specification |
|
Operating Temperature |
-20°C ~ +55°C |
|
Storage Temperature |
-40°C ~ +85°C |
|
Relative Humidity |
5% ~ 95% (non‑condensing) |
|
Cooling |
Fanless, natural heat dissipation |
|
MTBF |
100,000 hours |
|
Protection Grade |
IP40 |
|
Product Dimensions |
160 × 72 × 40 mm |
|
Weight |
0.6 kg |
|
Installation |
Wall‑mounted |
2.4 EMC & Surge Protection
|
Item |
Specification |
|
Power Surge |
IEC 61000‑4‑5, 4kV/2kV (8/20μs) |
|
LAN Port Surge |
IEC 61000‑4‑5, 4kV/2kV (10/700μs) |
|
ESD |
IEC 61000‑4‑2, ±8kV / ±15kV |
2.5 Indicators
PWR: Power status
PoE: PoE output active
3. Package List
- PoE Injector
- User Manual
- Mounting Accessories
4. Warranty
1 Year
5. Model Selection
PSE5560XGT
PoE injector, dual 10M/100M/1G/2.5G/10G RJ45 ports, 54V output, max 60W (802.3bt Type3), 100–240V AC, -20°C~+55°C, wall‑mounted.
PSE5590XGT
PoE injector, dual 10M/100M/1G/2.5G/10G RJ45 ports, 54V output, max 90W (802.3bt Type4), 100–240V AC, -20°C~+55°C, wall‑mounted.
