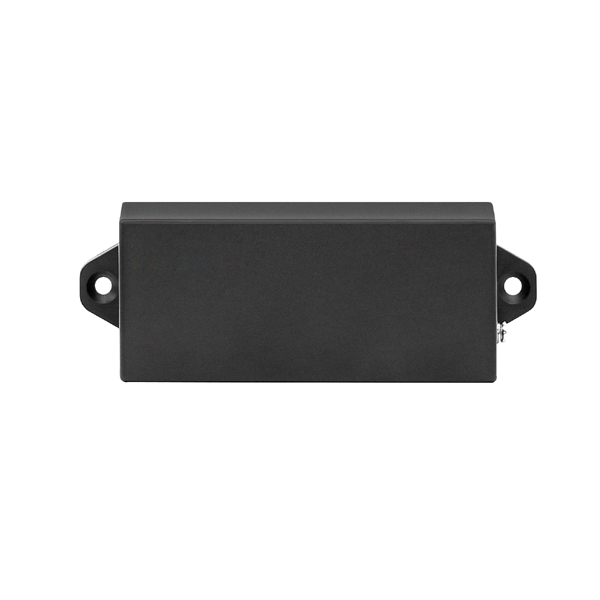

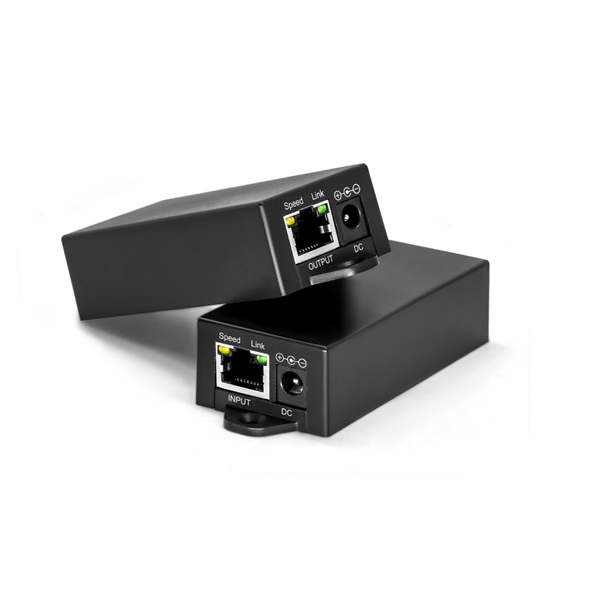

Model

PD101-482412

Product

Multi-function active Poe to 24V Passive Poe converter

Supporting instructions

Use with POE switch

Fixed port

1 x 10 / 100 / 1000m RJ45 ieee802.3af/at Poe input port

1 10 / 100 / 1000m RJ45 passive 24V Poe output port

PoE  Pin

POE IN: 37-57V in 1245+ 3678-

POE OUT: DC 24V 1A 45+ 78-

Power out

RJ45 output DC24V 1a, max. 24W

DC 5521 output DC12V 0.5A, maximum 6W

Poe ex distance

10 / 100 / 1000m mode, the maximum distance is 150m

Supporting power supply

DC30-57V MAX 1A

DC in

1: The default configuration is no power

2: 52V 0.6A power supply is optional and can be used as a single port 24V Poe power supply module

DC Input

As Network Extender： DC12V MAX 0.5A

As PoE Network Extender ：DC37-57V MAX 0.6A

LED Indicator

nput terminal: power receiving success indicator (network port green and orange)

Output terminal: output power indicator (network port green and orange)

Network POE Protocol

IEEE 802.3af/at

Passive 24V POE

Operating Temperature/Humidity

-10～+55°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+75°C；5%～95% RH Non coagulation

Product size（L*W*H）

112mm*41mm*26mm

N.W/G.W（kg）

0.15kg(1 pairs)

Installation

Desktop, wall mounted

Lightning protection level

3KV 8/20us；

IP30

Certificate

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Warranty

Whole device for 1 year(Accessories not included)
