Basic Specifications

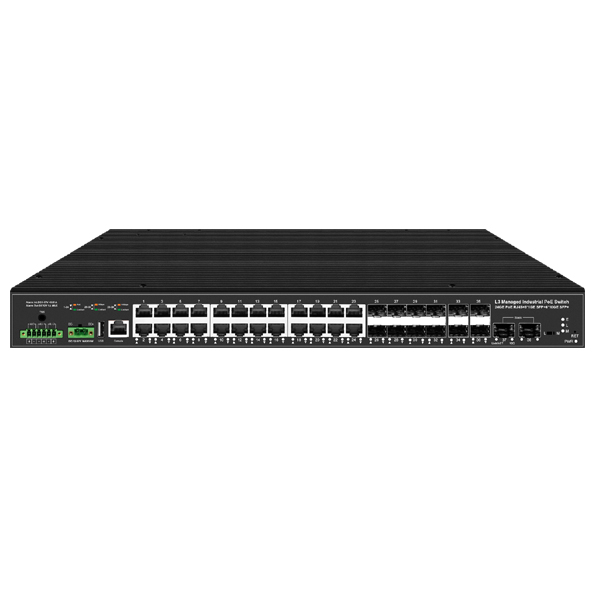

Model：G58M24GP8S-6S+

Product Name：L3 industrial grade Managed PoE Switch

1.      Port Configuration

• 24 × 10/100/1000M RJ45 PoE Ports
• 8 × 1Gbps SFP Ports
• 6 × 10Gbps SFP+ Ports

2.      PoE Parameters

PoE Standard & Output Power

• Port 1–4: IEEE 802.3af/at/bt compliant, Max 90W per port
• Port 5–24: IEEE 802.3af/at compliant, Max 30W per port

PoE Power Polarity

• af/at/bt: 12+ 45+ ; 36- 78-
• af/at: 12+ 36-

Total PoE Budget

Max 450W

4. Auxiliary Interfaces

• 1 × Console Port
• 1 × Reset Button
• RTC: Supported (3V-5032 battery to be installed by user)
• 2 sets of alarm input interfaces
• 1 set of buzzer warning interface
• 1 set of alarm output interface (Max: 12V 1A)
• 1 set of temperature & humidity sensor input interface

5. Performance Parameters

• Switching Bandwidth: 184Gbps
• Packet Forwarding Rate: 136.89Mpps
• MAC Address Table: 16K
• Packet Buffer: 12Mbit SRAM
• Jumbo Frame: Up to 12KB
• Flash: 512MB
• RAM: 512MB

6. Transmission Distance

• 10BASE-T: Cat3/4/5 UTP, ≤250m
• 100BASE-TX: Cat5 or above UTP, ≤150m
• 1000BASE-TX: Cat6 or above UTP, ≤150m
• SFP (1G): Single-mode / Multi-mode optical module, max ≤120km (depends on module)
• SFP+ (10G): Single-mode / Multi-mode optical module, max ≤120km (depends on module)

7. LED Indicators

• PWR: Power LED (Main Power: Yellow; Backup Power: Green)
• SYS: System indicator LED
• Port 1–32: Link / 1G Speed LED
• Port 33–38: Link / 10G Speed LED

8. Power Supply

Dual power redundant input

1. AC Input: 2P×5.08mm terminal

Built-in power: AC 100–240Vac, 50/60Hz, 5.4A, Max 480W

2. DC Input: 2P×5.08mm terminal

DC 48–57V, Max 12A, Max 500W

• No-load Power (All ports idle): 25W

9. Key Features

Unique integrated switch monitoring function:

1. Real-time detection and display of input voltage, current and power
2. Real-time monitoring of system temperature, ambient temperature and humidity
3. Support multiple custom port control and intelligent management
4. Use port network status and PoE status as alarm output triggers
5. Support alarm input as alarm output trigger
6. Alarm input linkage with network port / PoE actions
7. Temperature & humidity linkage to trigger network port / PoE alarm actions
8. Full SNMP nodes support, easy access to large-scale network monitoring platforms

10. Environmental Characteristics

• Operating Temperature: -40℃ ~ 75℃
• Storage Temperature: -45℃ ~ 80℃
• Operating Humidity: 5%~90%RH, Non-condensing
• Storage Humidity: 5%~95%RH, Non-condensing

11. Dimension & Weight

• Product Size (L×W×H): 440mm × 200mm × 46mm
• Package Size (L×W×H): 550mm × 295mm × 94mm
• Net Weight: 3.55kg
• Gross Weight: 4.06kg

12. Chassis Structure

• Base: 1mm high-quality galvanized steel plate
• Top cover: 3mm heat dissipation aluminum plate

13. Protection Level

• Lightning Protection: 6KV 8/20μs
• Ingress Protection: IP40

14. Installation

• Rack mountable (Rack brackets included)

15. Certifications

• CE-EMC EN55032
• CE-LVD EN62368
• FCC Part 15 Class B
• RoHS Compliant

16. Warranty

• 1-year warranty for the main device (accessories excluded)
