Product Name

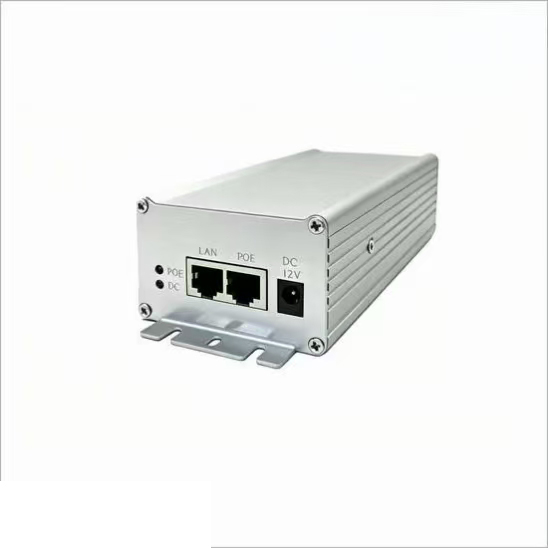

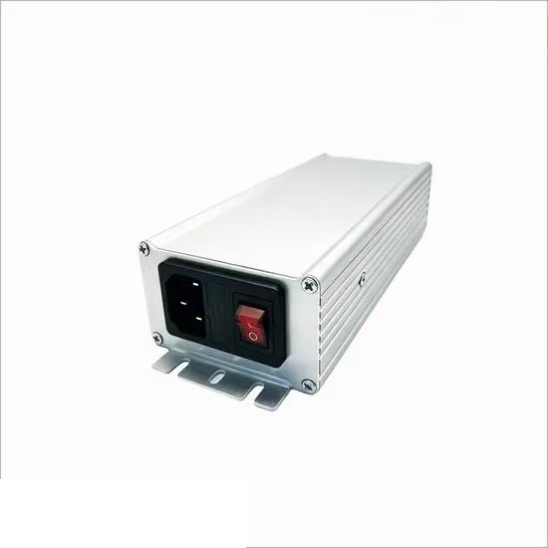

10Gbe Passive PoE Injector

Model

EC550-ACDF-10G-108W

EC550-ACDF-10G-168W

EC550-ACDB-10G-108W

EC550-ACDB-10G-168W

Connector Type

1x 10/100/1000/2500/5000/10000M copper cable RJ45 ports(all ports support MDI/MDIX) + 10/100/1000/2500/5000/10000M  ports

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100/1000/2500BASE-TX: Cat5 or more UTP (≤100 meter)

5000/10000BASE-TX: Cat7 or more UTP (≤50 meter)

Bandwidth

40Gbps (non-blocking)

MTBF

190,000 hours (about 21 years)

Forwarding Mode

Store-And-Forward

Data Pin

1236,4578

POE Pin

1236+ 4578-

LED Display

System: power supply; Every Port: connecting, PoE working status

Power Supply

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

PoE Ports

1 port support POE

PoE Port Power

56V

Max 95W

56V Max150W

56V

Max 95W

56V Max150W

DC Port

Front panel

Max18W

Front panel

Max18W

Back panel

Max18W

Back panel

Max18W

PoE Standard

EEE 802.3

IEEE 802.3u

IEEE 802.3ab

PoE Feature

All ports support MDI/MDIX

Working Environment

Operating Temperature: -20 ° ~ 75 ° C; Storage Temperature: -40 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing

Size/Weight

191*73*45mm/600g

200*135*50mm/650g （to be comfirmed）

Certification

CE Mark ,commercial; CE/LVD EN60950, RoHS

Radiation

CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B

Warranty

1 year warranty
