EC120B

12-60Vdc input 48V Gigabit POE injector

 12Vdc-60Vdc input
 IP30 rated Gigabit max 30w POE Injector
 Passive POE 45+,78- or 12+,36- optional
 Deliver power up to 100m (328 ft.) away
 Extreme -10 to 55 °C operating temperature range
 Desktop or wall mounted installation

EC120B Overview

This is a low-cost DC input POE injector. It supports a wide voltage range of 12-60Vdc and can output a maximum of 30W through an UTP cable to power terminal devices such as cameras, wireless APs, and access control systems. This power supply operates in a passive mode, and you can choose between mode A or mode B for power supply.

EC120B Specification

Model	EC120B

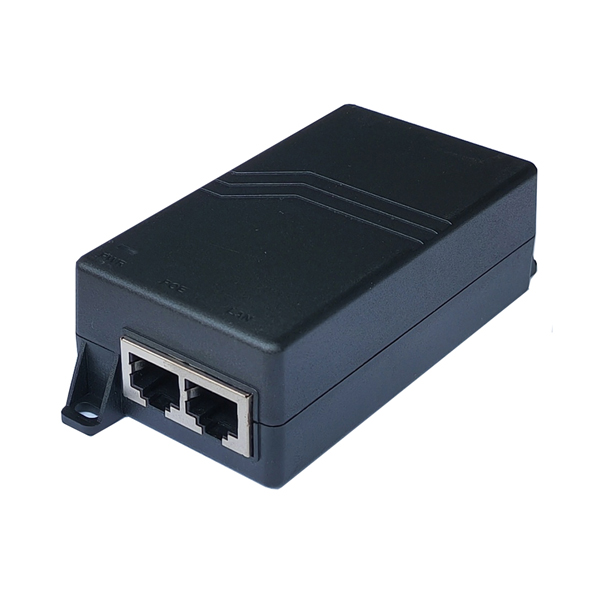

Port	1RJ4510/100/1000M Data IN
	1RJ4510/100/1000M PoE OUT

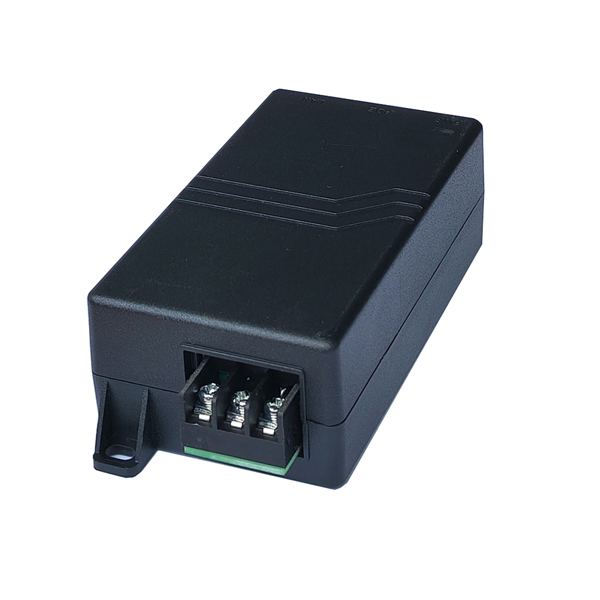

	1* DC IN (2P) power terminals
Standard	IEEE 802.3 IEEE 802.3u IEEE 802.3ab
DC IN	DC(2P)：12-60Vdc MAX 3A
PoE Output pins	45+,78-
Poe Out Watt	Max 30W
Data Pin	1234,5678
Indicator	PWR：Power ON
Transmission	10Base-T: two pairs of Cat3 or latter UTP/STP(≤250m) 100Base-TX: two pairs of Cat5 or latter UTP/STP(≤150m) 1000Base-T: for pairs of Cat5e or latter UTP/STP(≤100m)
Features	Plug and play without more configuration management Reliability：MTBF＞100k hours
Lightning Protection	3KV 8/20us；2KV ESD protection
Protect grade	IP30
Operation Environment	Operation Temperature：-10℃～55℃ Storage Temperature：-40℃～85℃
Operation Environment	Operation Humidity：10%～90% RH Non coagulation Storage Humidity：5%～90% RH Non coagulation
Product Size	1105032mm
Weight	70g
Warranty	1 year
