PSE-990X-POEPlus - Built Green Networks-30/60/90w industrial DC input POE injector & industrial POE splitter

Item	PSE-9901 (120W)	PSE-9902 (150W)	PSE-9903 (240W)	PSE-9905 (320W)

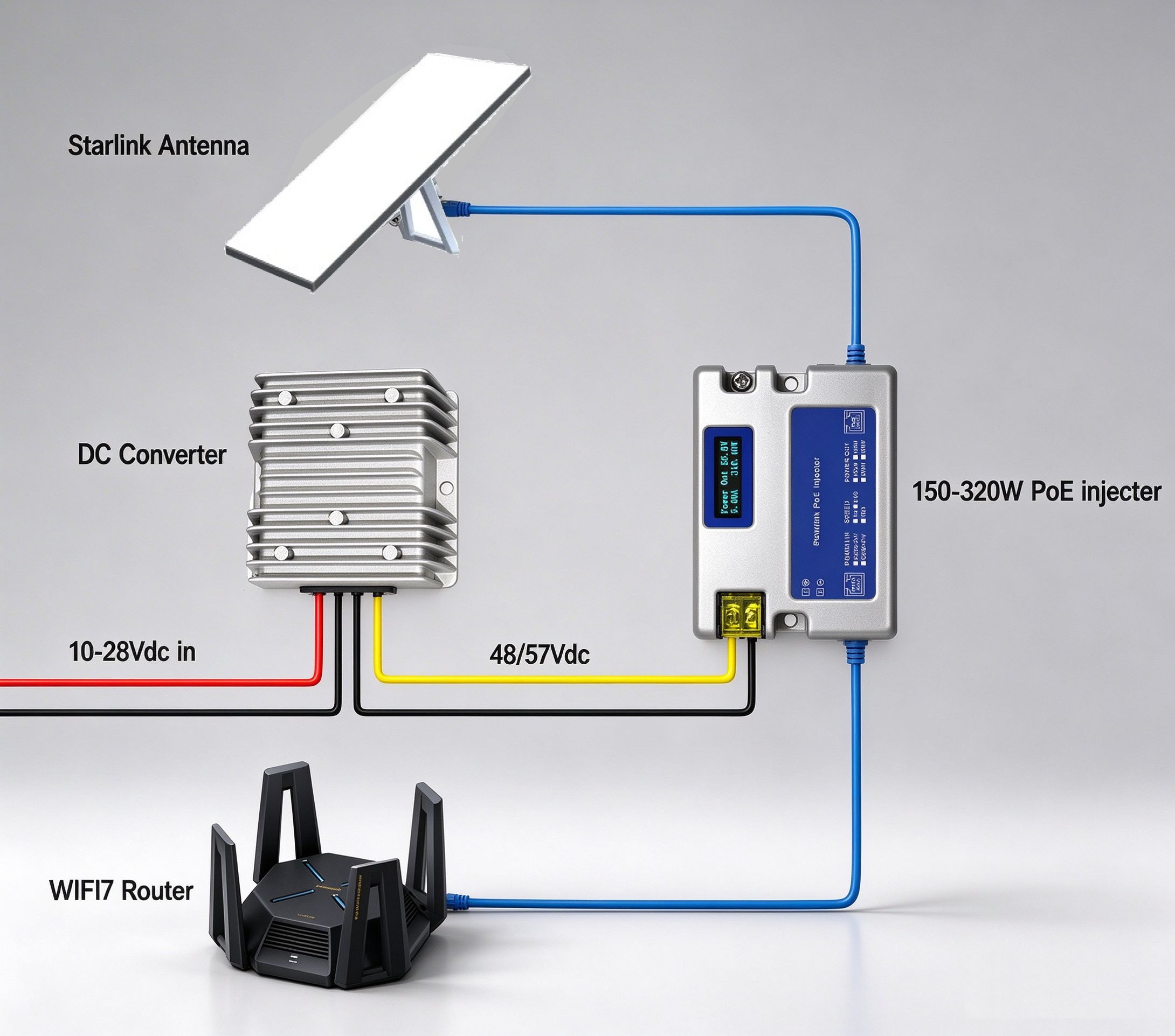

Product Name	10Gbe Industrial POE Injector for Starlink antenna
Fixed Ports	1×10/100/1G/2.5G/5G/10G Base-TX Data In 1×10/100/1G/2.5G/5G/10G Base-TX PoE Out
DC Input Terminal	2P 6.35mm Terminal Block
DC Input Voltage	48–57V	50–57V	52–57V	54–57V
Max DC Input Current	2.5A	3A	4.5A	5.7A
Max PoE Output Power	120W	150W	240W	320W
PoE Power Pin Assignment	12+, 36+ / 45-, 78-
Power Protection Functions	1. Overvoltage & Undervoltage Protection 2. Short-circuit Protection, Auto Recovery after Fault Removal 3. Overpower Limiting, Auto Load Disconnect
OLED Display Content	1. Input Voltage 2. Output Current 3. Load Power 4. Fault Alarm Prompt
Max Transmission Distance (Cat6 & Above UTP)	10BASE-T: ≤150m 100BASE-TX: ≤100m 1G BASE-TX: ≤100m 2.5G BASE-TX: ≤100m 5G BASE-TX: ≤80m 10G BASE-TX: ≤50m Note: Low-grade cables will reduce transmission power & distance
Operating Environment	Temperature: -40℃ ~ +80℃ Humidity: 5% ~ 90% RH, Non-condensing
Storage Environment	Temperature: -40℃ ~ +90℃ Humidity: 5% ~ 95% RH, Non-condensing
Dimension (L×W×H)	Unit: 80×60×23mm Package: 140×85×40mm
Weight	Net Weight: 0.12kg Gross Weight: 0.18kg
Lightning Surge Protection	10Kv 8/20μs
Mounting Method	Desktop Placement / Wall Mount
Certifications	CE-EMC EN55032 CE-LVD EN62368 FCC Part 15 Class B RoHS Compliant
Warranty	1-year

3. Key Features

Multi-Gigabit Ethernet: Support 10M/100M/1G/2.5G/5G/10G full rate auto-negotiation, backward compatible with legacy Ethernet devices.
High-Power PoE Output: Four power grades from 120W to 320W to meet high-power industrial terminals demand.
Real-Time OLED Screen: Visually monitor input voltage, output current, load power and fault status without extra testing tools.
Complete Circuit Protection: Over/under voltage, short circuit auto-recovery, overpower cut-off to protect PSE unit and powered devices.
Industrial Wide Temperature Design: Operates stably from -40℃ to +80℃, suitable for outdoor, factory, cabinet harsh environments.
10Kv Lightning Surge Protection: Resist surge damage from thunderstorm and power grid fluctuation.
Flexible Installation: Support desktop laying and wall-mounted installation for various deployment scenarios.
Global Compliance Certifications: CE, FCC, RoHS certified, eligible for worldwide industrial and commercial projects.

4. Application Scenarios
