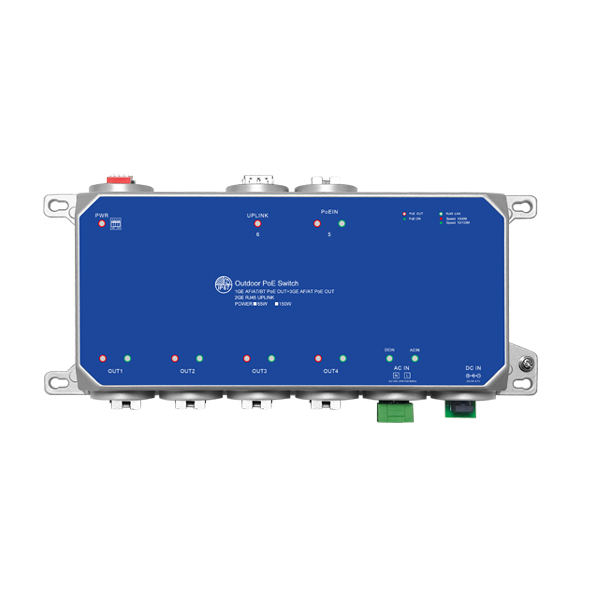

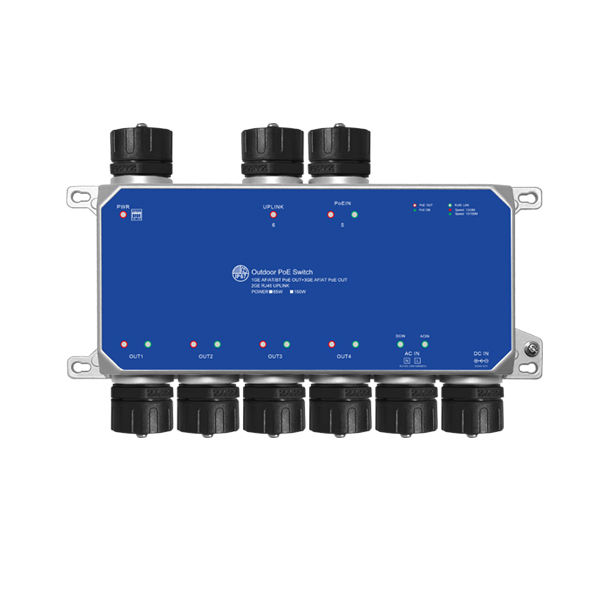

S604GP-2G-OT Overview

S604GP-2G-OT-150W is an industrial-grade gigabit outdoor waterproof PoE switch with IP67 protection rating. Constructed with aluminum die-casting housing and nylon waterproof joints, it can operate reliably under harsh outdoor environmental conditions, supported by wide-range temperature capability and 6-KV lightning surge protection. This switch is equipped with 4×Gigabit PoE RJ45 ports and 2×Gigabit RJ45 uplink data-only ports. Port 1 supports IEEE802.3bt with up to 90 W PoE output, while Port 2-4 comply with IEEE802.3af/at delivering up to 30 W per port. The built-in POEDOG function automatically detects and resets faulty PoE-powered devices. It supports long-distance Ethernet transmission and dual AC-DC power input, making it an ideal solution for outdoor surveillance, outdoor wireless AP deployment and other field network projects.

IP67-rated Outdoor Waterproof Enclosure

Aluminum die-cast body with nylon waterproof joints; supports network cables with Φ4-8 mm diameter for stable all-weather outdoor deployment.

Full Gigabit RJ45 Port Configuration

4×10/100/1000Base-TX RJ45 ports for data + PoE output
2×10/100/1000Base-TX data-only uplink RJ45 ports

Multi-standard PoE Power Supply

Port 1: IEEE802.3af/at/bt, maximum 90 W PoE output
Port 2-4: IEEE802.3af/at, maximum 30 W PoE output per port
PoE pin assignment: bt mode 12+,45+,36-,78-; af/at mode 12+,36-
Built-in AC total PoE power budget: max 155 W

POE watchDOG Intelligent PoE Watchdog

 Automatically detects PoE-powered terminals and performs power-cycle reset for fault devices to restore network connection without on-site manual operation.

Long-distance Transmission & Port Isolation

10BASE-T: up to 250 m over Cat3/4/5 UTP cable
100BASE-TX: up to 150 m over Cat5 or higher UTP cable
1000BASE-TX: up to 100 m over Cat6 or higher UTP cable
Supports port isolation to improve local network security

High-performance Switching Hardware

Switching bandwidth: 12 Gbps
Packet forwarding rate: 8.928 Mpps
MAC address table: 2 K entries
Packet buffer: 2 M

Flexible Dual AC-DC Power Input

Built-in AC input: 100-240 Vac, 50-60 Hz, 1.0 A, max 155 W
DCIN (DC5525): DC 12-57 V; max 5 W without PoE load, max 180 W under PoE working mode

Harsh Environment Compatibility & Surge Protection

Operating temperature: -40℃ ~ +80℃; humidity 5%-90% RH non-condensing
Storage temperature: -40℃ ~ +90℃; humidity 5%-95% RH non-condensing
6 KV (8/20μs) lightning surge protection
Installation mode: desktop placement or wall-mount installation

Rich LED Status Indicators

POE-out LED, PoE-port LAN link LED, uplink-port LAN link & 1G speed LED, internal POEDOG LED, ACIN & DCIN power LED for real-time device status monitoring.

Mechanical Data, Certifications & Warranty

Main dimension(L×W×H): 255×150×48 mm; packing dimension: 305×265×63 mm
Net weight:1.12 kg; Gross weight:1.38 kg
Certifications: CE-EMC EN55032, CE-LVD EN62368, FCC Part 15 Class B, RoHS
Warranty: 1-year whole-device warranty (accessories excluded)

S604GP-2G-OT Specification

Technical Specifications Table

Item	Specification
Model	S604GP-2G-OT-150W
Product Type	Gigabit IP67 Outdoor Waterproof PoE Switch
Housing Material	Aluminum die-casting body, Nylon waterproof joint
IP Rating	IP67
Supported Cable Diameter	Φ4-8 mm
Fixed Ports	4×10/100/1000Base-TX(Data+PoE); 2×10/100/1000Base-TX(Data only)
PoE Output	Port1: IEEE802.3af/at/bt, max 90WPort2-4: IEEE802.3af/at, max 30W
PoE Pinout	Bt:12+,45+,36-,78-; Af/at:12+,36-
Functions	Port Isolation, Long-distance transmission, POEDOG
Switch Bandwidth	12 Gbps
Packet Forwarding Rate	8.928 Mpps
MAC Address Table	2 K
Packet Buffer	2 M
UTP Transmission Distance	10BASE-T ≤250 m;100BASE-TX ≤150 m;1000BASE-TX ≤100 m
LED Indicators	POE out, PoE-port LAN link, Uplink-port LAN link & 1G speed, POEDOG, ACIN, DCIN
Power Supply	AC:100-240Vac 50-60Hz 1.0A Max 155WDCIN:DC12-57V(no-PoE max5W); DC44-57V(PoE max180W)
Operating Condition	-40～+80℃, 5%-90%RH Non-coagulation
Storage Condition	-40～+90℃,5%-95%RH Non-coagulation
Dimension(LWH)	Main body:25515048mm; Packing:30526563mm
Weight	N.W:1.12kg; G.W:1.38kg
Lightning Protection	6KV 8/20us
Installation	Desktop, Wall mounting
Certificates	CE-EMC EN55032, CE-LVD EN62368, FCC Part15 Class B, RoHS
Warranty	1-year for whole device (accessories excluded)
