S5830GP-6SE-R Overview

The S5830GT(P)-6SE is a layer 3 Ethernet switch, which meet the needs of cost-effective Gigabit access and 10 Gigabit uplink for enterprise networks and operator customers. S5830GT(P)-6SE uses a high-performance low-power network processor, provides multi-Gigabit line-speed forwarding performance, supports green Ethernet line sleep capability, has the lowest power consumption of the same-level equipment in the industry, supports powerful QoS and ACL functions, and supports IP+MAC+ Security features such as port binding support service flow classification and packet priority marking. Support static data packet sampling, SFLOW function, support multi-port mirroring analysis function, support static and flexible QinQ function, support strategy-based IPV4/6 unicast routing, support Flexible forwarding strategy. S5830GT(P)-6SE can meet the specific priority needs of enterprise network video, audio high-priority data and other specific data traffic QOS and multicast functions; it is well adapted to the current enterprise network needs to use VLAN isolation, and the data is strictly prioritized Typical applications of guarantees. The multi-Gigabit and 10 Gigabit ports of S5830GT(P)-6SE can provide affordable, high-density, strong scalability, and simple management aggregation solutions for enterprise networks, IP networks, and campus network.

S5830GP-6SE-R Specification

Model	S5830GP-6SE-R

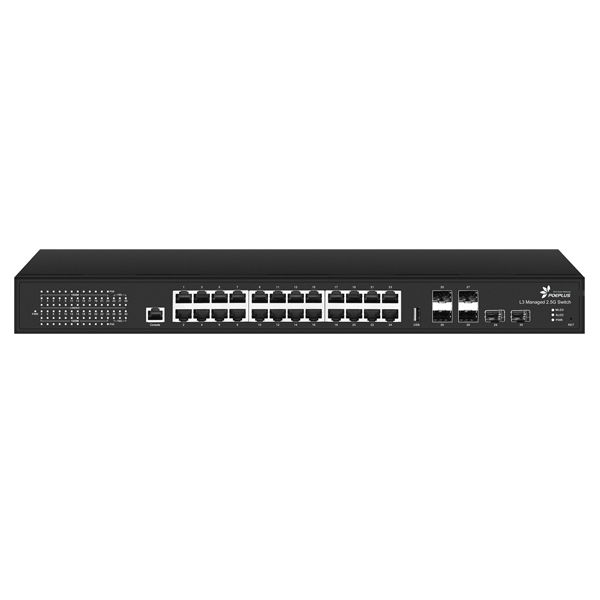

Fixed Port	2410/100/1000/2.5GBase-TX 610G SFP+ (Port 29-30 SFP+ STACKING)
PoE Port	1-12 port supports PoE IEEE 802.3af/at/poe++/BT 90W 13-24 port supports PoE IEEE 802.3af/at
PoE type	IEEE802.3af/at/bt
Console Port	1*console port
Stacking Switch	1
USB	1
Reset Key	1
CPU	Realtek 9313
DDR	2G DDR3 1333MHz
Buffer	Fully integrated 1.5 MB packet buffer
FLASH	64M
RAM	512M
Bandwidth	240Gbps
Packet Forwarding	160Mpps
MAC Address	32K
Network Protocol	IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-TX IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q 、 IEEE 802.3q/p IEEE 802.1w、 IEEE 802.1d 、 IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) EPPS ring network protocol, EAPS ring network protocol
Port Specification	10/100/1000/2.5G BaseT（X）Auto
Transmission Mode	Store and Forward (full wirespeed)
Transmission Distance	10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-TX ： Cat6 or later UTP(≤100 meter) 2500BASE-TX ： Cat6 or later UTP(≤100 meter)
LED Indicator	PWR:Power LED SYS:(System LED) 1~24:(Link LED=10/100M Link、1000M=Gigabit Link） 1~24:(PoE LED=PoE on） 25-30（SFP LED）

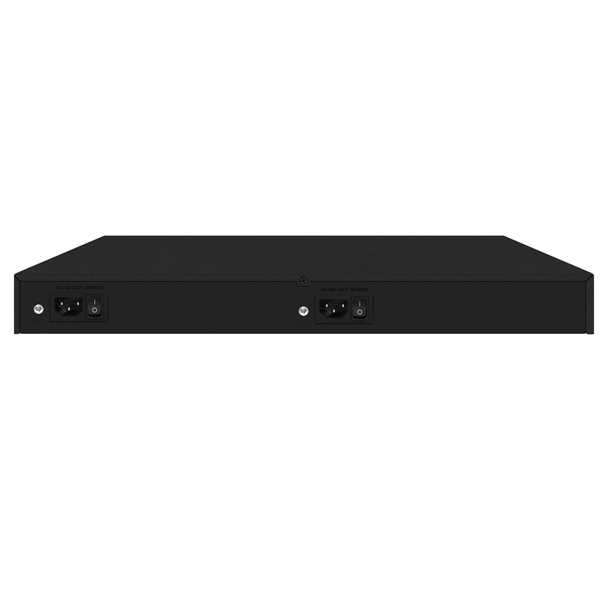

Power	Built-in DUAL power AC 100~240V 50/60HZ Max Current 4.8A Max Power 800W+800W
Operating Temperature/Humidity	-20～+55°C；5%～90% RH Non coagulation
Storage Temperature/Humidity	-40～+75°C；5%～95% RH Non coagulation
Physical size	Product size: 440mm290mm45mm Packing size: 515mm375mm95mm
N.W/G.W（kg）	3.5kg/4.3kg
Installation type	1U Rack type, 19 "
Lightning protection level	3KV 8/20us； IP30
Certificate	CE mark, commercial；CE/LVD EN60950； FCC Part 15 Class B；RoHS；
Warranty	Whole device for 1 year(Accessories not included)
