New S5730M series have mGig ports and also sup- ports Power over Ethernet (PoE), including PoE+ and PoE++(60W/90W). Certainly it is good for 802.11ax and 802.11be wireless LAN applications and helps you avoid having to run multiple cables between switches and access points and let your networks welcome next-generation traffic speeds and data rates.
New S5730M series provide 25G/100G uplink ports which could be designed to offer redundant uplinks with various ring protection applications, effectively raised the expansibility and performance of the net- work.
AllthebusinessportsonS5730Mseriesprovide 6KV-8KV lightning protection capability which greatly reduces the damage rate of equipment from lightning. G. 8032providessub-50msprotectionandrecovery sw itching for Ethernet traffic in a carrier ring topology.
Virtual Switch Framework can virtualize multiple DCN switches into one logical device, achieving the sharing of information and data tables between differ- ent switches. The performance and ports density of virtualized devices is greatly enlarged by times under VSF. VSF also simplifies management work for the network administrator and provides more reliability.
New S5730M series deliver high-performance, hard- ware-based IP routing, RIP, OSPF, and BGP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. With new S5730M series switch, customers could easily achieve Policy-based Route (PBR), which is important when they need a multi exit application.
New S5730M series support abundant multicast fea-t ures. In Layer 2, such as IGMPv1/v2/v3 snooping and f ast leave. L3 multicast protocols such as I GMPv1/v2/v3,PIM-DM,PIM-SM,PIM-SSM,and e
ven MSDP. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions; New S5750M series provide a great application experience for the customer.
With 8 queues per port, new S5730M series enable differentiated management of up to 8 traffic types. The traffic is prioritized according to IEEE802.1p, DSCP, IP precedence, and TCP/UDP port number, giving op-t imalperformancetoreal-timeapplicationssuchas voice and video.
It also supports Bi-directional rate-limiting, per port or traffic class preserves network bandwidth, and allows full control of network resources.
New S5730M series support IPv6 switching and rout-i ngbasedonhardwareformaximumperformance. With increased network devices growing the need for larger addressing and higher security become critical, it will be the right product to meet this requirement.
|
Item |
S5730M-24NT4Y2C-P-EI |
S5730M-24XT4Y2C-P-EI |
*S5730M-24XT4Y2C-EI |
|
Physical ports |

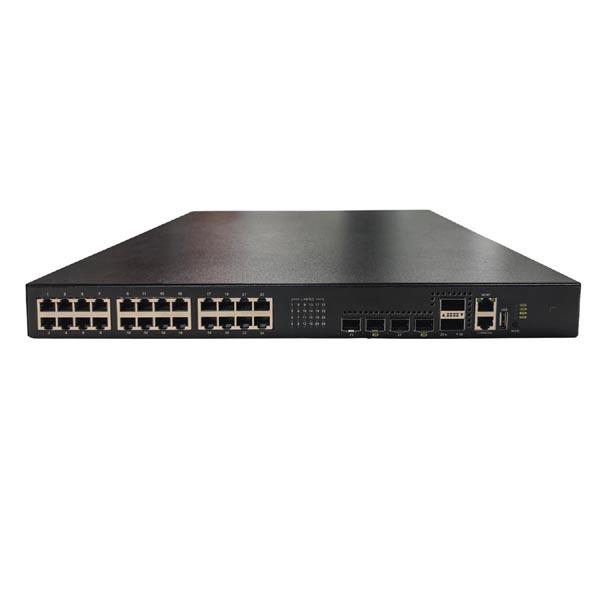

24*1G/2.5G/5G Base-T(PoE++) + 4*10G/25G (SFP+) + 2*40G/100G(QSFP28) |
24*1G/2.5G/5/10G Base-T (PoE++) + 4*10G/25G (SFP+) + 2*40G/100G(QSFP28) |
24*1G/2.5G/5/10G Base-T + 4*10G/25G (SFP+) + 2*40G/100G(QSFP28) |
|
Management ports |
100/1000M Base-T RJ45 MGMT Console port (RJ45) USB2.0 |
||
|
Performance |
|||
|
Switching Capacity |
|
|
|
|
840Gbps |
1.08Tbps |
1.08Tbps |
|
|
|
|
|
|
|
Forwarding Rate |
654.76Mpps |
654.76Mpps |
654.76Mpps |
|
RAM |
1G |
2G |
* |
|
FLASH |
16MB SPI 256MB NAND |
||
|
MAC Ad- dress |
Standard：48k；Route：32k；bridge：96k |
||
|
Routing Ta- ble |
16K |
||
|
L3 Interface |
65 |
||
|
Physical |
|||
|
Dimension (W*H*D) |
|
||
|
442mm*45mm*422mm |
|||
|
|
|||
|
Relative Humidity |
5%~95% non-condensing |
||
|
Temperature |
Working 0°C~45°C, storage -40°C~75°C |
||
|
Power Sup- ply |

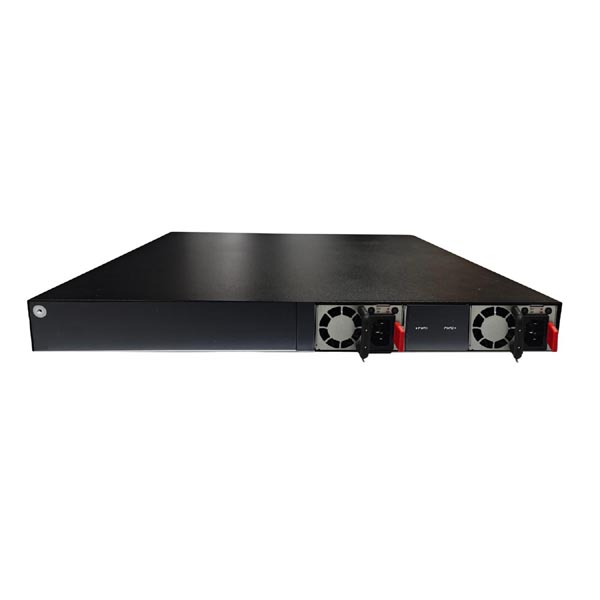

Dual hot-swappable AC PSUs：
220V AC(600W)；220V AC(920W). PSU models can not be mixed on one switch. |
|
|
|
Power Con- sumption |
|
|
|
|
<155W |
<170W |
<170W |
|
|
|
|
|
|
|
PoE Budget |
400w PoE(Single PSU (220V AC, 600W))，800w PoE(Dual PSUs (220V AC, 600W)) 700w PoE(Single PSU (220V AC, 920W))，1400w PoE(Dual PSUs |
// |
|
|
Item |
S5730M-24NT4Y2C-P-EI |
S5730M-24XT4Y2C-P-EI |
*S5730M-24XT4Y2C-EI |
|
|
(220V AC, 920W)) |
|
|
|
PoE |
IEEE 802.3af (15.4W) ； IEEE 802.3at (30W) ； IEEE 802.3bt (60W/90W) |
IEEE 802.3af (15.4W) ； IEEE 802.3at (30W) ； IEEE 802.3bt (60W/90W) |
/ |
|
|
|||
|
Main features |
|||
|
L1/L2 |
Port loopback detection LLDP and LLDP-MED UDLD IEEE 802.3ad LACP, max 128 group trunks with max 8 ports for each trunk LACP load balance ERPS (G.8032) |
||
|
N:1 Port Mirroring RSPAN |
|||
|
IEEEE802.1d(STP) IEEEE802.1w(RSTP) IEEEE802.1s(MSTP) Root Guard BPDU Guard BPDU Tunnel |
|||
|
IEEE 802.1Q, 4096 VLAN MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN QinQ, Selective QinQ, Flexible QinQ (S5750M-18X-P-SI not supports selective QinQ ) GVRP N:1 VLAN Translation Broadcast / Multicast / Unicast Storm Control |
|||
|
IGMP v1/v2/v3 Snooping and L2 Query ND Snooping MLDv1/v2 Snooping |
|||
|
Port Security |
|||
|
L3 |
Static Routing, RIPv1/v2, OSPFv2, BGP4 OSPFv3, BGP4+ OSPF multiple processes Policy-based routing (PBR) for IPv4 and IPv6 VRRP URPF, ECMP BFD |
||
|
ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit Anti ARP Cheat, Anti ARP Scan |
|||
|
DNS Client, DNS Relay |
|||
|
ICMPv6, ND, DNSv6 IPv6 Policy-based Routing (PBR) IPv6 VRRPv3, IPv6 URPF, IPv6 RA RIPng, OSPFv3, BGP4+ IPv6 ACL, IPv6 QoS |
|||
|
Multicast |
MLD v1/v2, MLD Proxy, MLD Snooping IGMP V1, V2, V3, IGMP Query, IGMP snooping, IGMP Proxy |
||
|
Item |
S5730M-24NT4Y2C-P-EI |
S5730M-24XT4Y2C-P-EI |
*S5730M-24XT4Y2C-EI |
|
|
PIM-DM, PIM6-DM; PIM-SM, PIM6-SM; PIM-SSM, PIM6-SSM PIM-SM/DM for IPv6, IPv6 Anycast RP Static Multicast Route Multicast Receive Control Illegal Multicast Source Detect |
||
|
QoS |
8 Queues 802.1p, DSCP remarketing IP Precedence Remarking Outbound queue priority based on 802.1p/DSCP/IP precedence SP, WRR, WDRR, WRED Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number Traffic Policing PRI Mark/Remark |
||
|
ACL |
IP ACL, MAC ACL, IP-MAC ACL Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS Redirect and Statistics Rules can be configured to port, VLAN Time Ranged ACL |
||
|
Security |
IEEE 802.1x AAA Port/ MAC based authentication Accounting based on time length and traffic Guest VLAN and auto VLAN |
||
|
RADIUS for IPv4 and IPv6 |
|||
|
TACACS+ for IPv4 and IPv6 |
|||
|
MAB |
|||
|
DHCPv4/v6 |
DHCP Server/Client for IPv4/IPv6 DHCP Relay/Option 82 DHCP Snooping/Option 82 |
||
|
Traffic Mon- itor |
sFlow Traffic Analysis |
||
|
Security Network Management |
CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6 Syslog and external Syslog Server HTTP SSL SNMP MIB, SNMP TRAP FTP/TFTP SNTP/NTP RMOM 1,2,3,9 Authentication by Radius/TACACS SSH v1/v2 Dual firmware images/ Configuration files 802.3ah OAM, 802.1ag OAM |
||
|
Data Center Features |
VSF (Virtual Switch Framework) (For 25G ports stacking, only Port25/Port27 support VSF) |
||
