Model
|

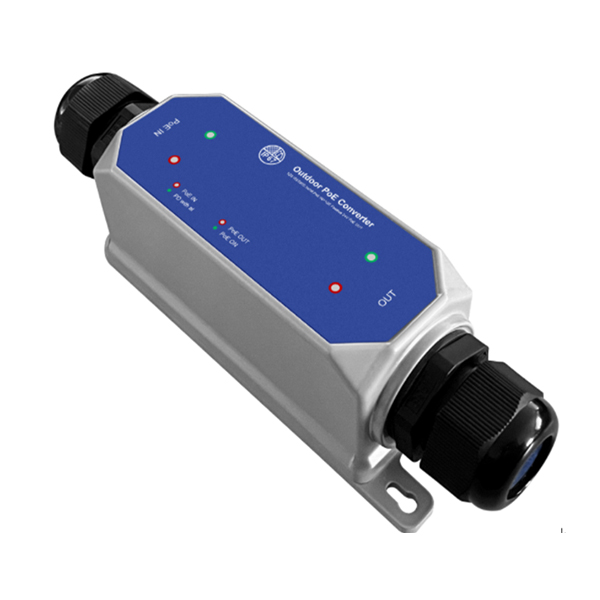

PD48PSE-GL-24V-OT
|
|
Product name
|
IP67 level outdoor waterproof active to Passive POE converter
|
|
Material
|
Aluminum die-casting body
Nylon waterproof joint
|
|
Waterproof grade
|
IP67
|
|
Wire diameter
|
Support network cables with a Φ of 4-8mm
|
|
Fixed Port
|
1*10/100/1000/2500BASE-TX in
1*10/100/1000/2500BASE-TX out
|
|
PoE in
|
Supports IEEE802.3af/at, max 30W PoE in
Supports Passive DC37-57V MAX 30W in
|
|
PoE in Pin
|
12+ 45+ 36- 78-
|
|
DC-DC type
|
1.5KV isolation type
|
|
Output voltage
|
DC 24V
|
|
Output current
|
MAX 1.25A
|
|
POWER
|
MAX 30W
|
|
Ripple wave
|
≤120 mv
|
|
Conversion efficiency
|
89-91%
|
|
PoE OUT
|
Passive DC 24V MAX 30W PoE out
|
|
PoE OUT Pin
|
45+ 78-
|
|
POE in+out
Transmission Distance
|
10BASE-T ： Cat3,4,5 UTP(≤150 meter)
100BASE-TX ： Cat5 or later UTP(100 meter)
1000BASE-TX ： Cat6 or later UTP(100 meter)
2500BASE-TX ： Cat6 or later UTP(90 meter)
|
|
LED Indicator
|
Power: Power in LED、Power outl LED
POE in: on LED
|
|
Operating Temperature/Humidity
|
-40～+80°C；5%～90% RH Non coagulation
|
|
Storage Temperature/Humidity
|
-40～+90°C；5%～95% RH Non coagulation
|
|
Product /Packing
size（L*W*H）
|
160*43*43mm
170*49*48mm
|
|
N.W/G.W（kg）
|
0.19kg/0.22kg
|
|
Lightning
Protection level
|
6KV 8/20us；
|
|
Installation
|
Desktop、wall installation
|
|
Certificate
|
CE-EMC EN55032；CE-LVD EN62368；
FCC Part 15 Class B；RoHS；
|
|
Warranty
|
Whole device for 1 year(Accessories not included)
|
