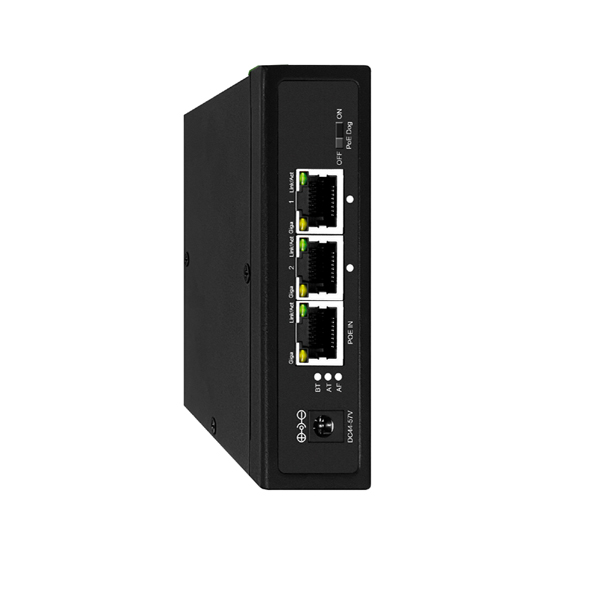

EXT102GP IDS Specification

Features

1×10/100/1000M RJ45 PoE power‑receiving input port; 2×10/100/1000M RJ45 PoE power‑supply output ports
DIP switch configurable: 250‑meter long‑reach mode and PoEDog watchdog for Port1 and Port2
PoE input compliant with IEEE802.3 bt/af/at, supports 40‑57V passive PoE input, max receiving power 120W
PoE input distance: 150m for 1000M /100M, up to 250m for 10M
Port1 output supports IEEE802.3 bt/af/at; Port2 output supports IEEE802.3 af/at
PoE output distance: 150m max for 1000M/100M, 250m max for 10M
Total cascaded extension: 300m max for 1000M/100M; 500m max for 10M rate
Multiple optional external power adapters:
- 12V 0.5A for pure network extender application
- 52V 1.25A works as 2‑port PoE switch (2×AT)
- 52V 2.3A works as 2‑port PoE switch (1×BT +1×AT)
Store‑and‑forward, full wire‑speed forwarding
10Gbps switching bandwidth, 7.44Mpps packet forwarding rate, 2K MAC address table, 2.5M buffer memory
Rich LED indicators: Pwr, Link/Speed, PoE, BT, AT status
Low standby power ≤1W
DC input: DC12V max 0.5A (as network extender); DC37‑57V max 1.25A (BT version max 2.3A)
Surge protection: 3KV (8/20us), IP30 protection grade
Operating temperature: ‑10℃ ~ +55℃; Storage temperature: ‑40℃ ~ +75℃
Desktop installation
Certifications: CE, FCC Part15 Class B, RoHS
1‑year warranty for main unit (accessories excluded)

Technical Specifications

Item	Specification
Model	EXT102GP‑IDS
Product Type	1 in 2 out Industrial PoE Extender
Fixed Ports	1×10/100/1000M RJ45 PoE Input 2×10/100/1000M RJ45 PoE Output
DIP Functions	Port1 250m Extender ON/OFF Port1 PoEDog ON/OFF Port2 250m Extender ON/OFF Port2 PoEDog ON/OFF
PoE In	IEEE802.3 bt/af/at, 40‑57V passive PoE Max receiving power:120W PoE Pin:1245+,3678‑
PoE Input Distance	1000M/100M:150m max 10M:250m max
PoE Output	Port1: IEEE802.3 bt/af/at Port2: IEEE802.3 af/at PoE Pin:1245+,3678‑ 1000M/100M:150m max 10M:250m max
Total Cascaded Distance	1000M/100M:300m max 10M:500m max
DC Input	Network Extender: DC12V Max 0.5A PoE Extender: DC37‑57V Max 1.25A (BT Max 2.3A)
Switch Performance	Bandwidth:10Gbps Packet Forwarding Rate:7.44Mpps MAC Address Table:2K Buffer:2.5M Forwarding Mode: Store and Forward
LED Indicators	Pwr, Port Link/Speed, PoE, BT, AT
Standby Power	≤1W
Surge & Protection	3KV 8/20us, IP30
Working Humidity	5%‑90% RH Non‑condensing
Storage Humidity	5%‑95% RH Non‑condensing
Dimension(L×W×H)	105mm×90mm×30mm Packing:200mm×130mm×40mm
Weight	N.W:0.35kg G.W:0.45kg
Installation	Desktop
Certificates	CE, FCC Part15 Class B, RoHS
Warranty	1‑year for main unit, accessories not included
