MC-GPSFP-OT

IP67 waterproof gigabit fiber media converter

• IP67 waterproof metal enclosure, outdoor rated for direct exposure to rain and dust
• 1 × Gigabit SFP slot, compatible with standard 1G SFP transceivers (single-mode / multi-mode)
• 1 × 10/100/1000M adaptive RJ45 PoE output port
• Two hardware versions optional: 802.3at (30W) or 802.3bt (90W) PoE output
Store-and-forward switching, full gigabit wire-speed forwarding

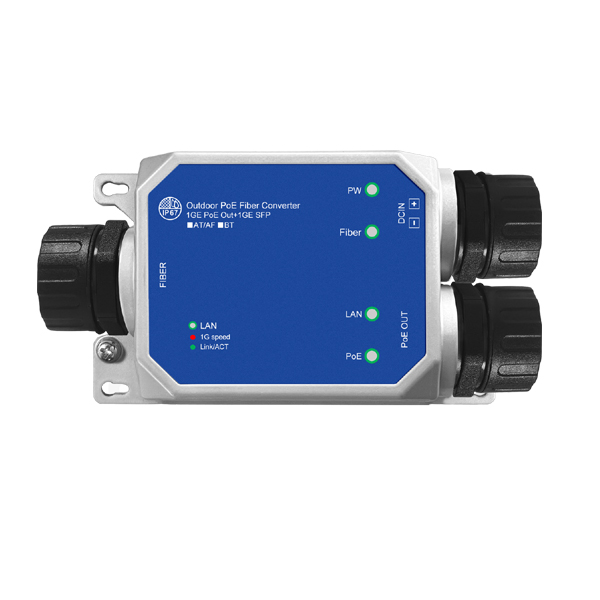

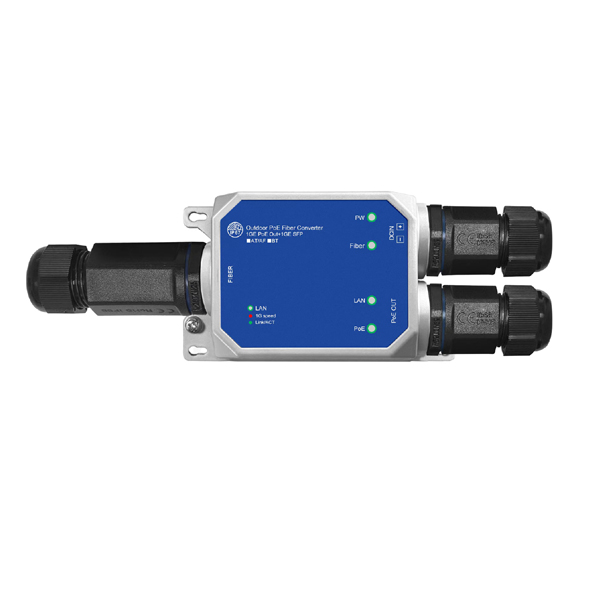

MC-GPSFP-OT Overview

This IP67 outdoor waterproof PoE fiber converter is designed for harsh field surveillance and networking deployments. It features one 1G SFP fiber port, one 10/100/1000M adaptive RJ45 PoE output port and one DC power input. It is available in two variants: IEEE802.3at and IEEE802.3bt PoE output. Powered by DC 48–57V, it converts optical fiber signal to Gigabit Ethernet with PoE power supply, directly feeding IP cameras, wireless APs and other PoE devices. Fully sealed IP67 waterproof housing makes it suitable for outdoor, roadside, tower and unattended sites.

MC-GPSFP-OT Specification

Features

IP67 waterproof metal enclosure, outdoor rated for direct exposure to rain and dust
1 × Gigabit SFP slot, compatible with standard 1G SFP transceivers (single-mode / multi-mode)
1 × 10/100/1000M adaptive RJ45 PoE output port
Two hardware versions optional: 802.3at (30W) or 802.3bt (90W) PoE output
DC input: 48V ~ 57V wide voltage input
Store-and-forward switching, full gigabit wire-speed forwarding
LED status indicators: PW (Power), Fiber, LAN, PoE
LAN indicator supports dual-color prompt: Red for 1G speed, Green for Link/ACT
Wall mount bracket design, easy for pole or cabinet installation
Surge protection built-in for outdoor anti-interference
Compliant with CE, FCC, RoHS

Technical Specifications

Item	Specification
Product Name	Outdoor PoE Fiber Converter
Housing Rating	IP67 Waterproof
Port Configuration	1 × 1G SFP Fiber Port 1 × 10/100/1000M RJ45 PoE Output 1 × DCIN Power Input
PoE Standard	Option 1: IEEE802.3at (Max 30W) Option 2: IEEE802.3bt (Max 90W)
DC Input Voltage	48V ~ 57V DC
Ethernet Speed	10/100/1000Mbps auto-negotiation
Forwarding Mode	Store-and-Forward
Indicators	PW (Power), Fiber, LAN, PoE LAN: Red=1G Speed, Green=Link/ACT
Installation	Wall / Pole mounting
Operating Temperature	-40℃ ~ +75℃ (customizable upon request)
Humidity	5%~95% RH, non-condensing
Certification	CE, FCC Part15 Class B, RoHS
Application	Outdoor IP camera, wireless AP, remote industrial network, road monitoring
