Model

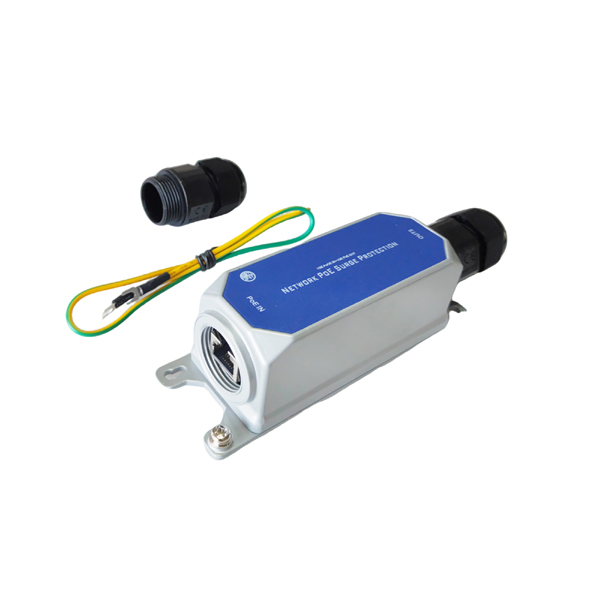

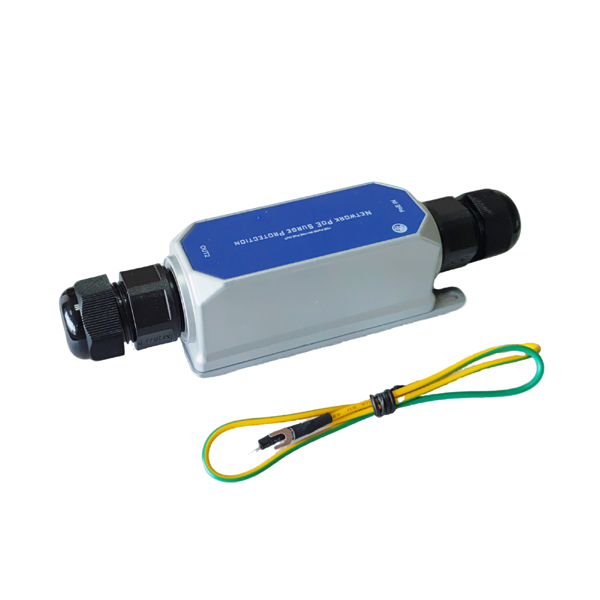

A-GE-POE-48V-OT

material

Aluminum die-casting body

Nylon waterproof joint

Waterproof grade

IP67

Wire diameter

Support network cables with diameter Φ of 4-8mm

Electrical Parameter (Network & Power)

Nominal operating voltage Un

48V

Max. continuous operating voltage Uc

57V

Nominal discharge current（8/20µs）In

5kA

Max. discharge current （8/20µs）Imax

10KA

Limiting voltage Up

200V

Line-line (@6kV, 10/700µs)

≤150V

Line-line (@3kA, 8/20µs)

≤150V

Adapt transmission rate

2500Mbps

Insertion loss

≤0.5dB

Protection line

1-8

Response time  tA

1ns

Load current

250mA

Application

Cat. 6

Mechanical characteristics

Dimension

160*43*43mm

170*49*48mm（package size）

Weight per unit

190g

Protection grade

IP67

Working conditions

Temperature: -40 to 85℃,

Relative humidity: ≤95％

Standards compliance

CE, FCC, RoHS，ISO9001
