Item

Specification

Model

S604GP-1TS-150W

Product Type

Gigabit IP67 Outdoor Waterproof PoE Switch

Housing Material

Aluminum diecasting body, Nylon waterproof joint

IP Rating

IP67

Supported Cable Diameter

Φ48 mm

Fixed Ports

4×10/100/1000BaseTX(Data+PoE); 1×10/100/1000BaseTX(Uplink); 1×1000M SFP

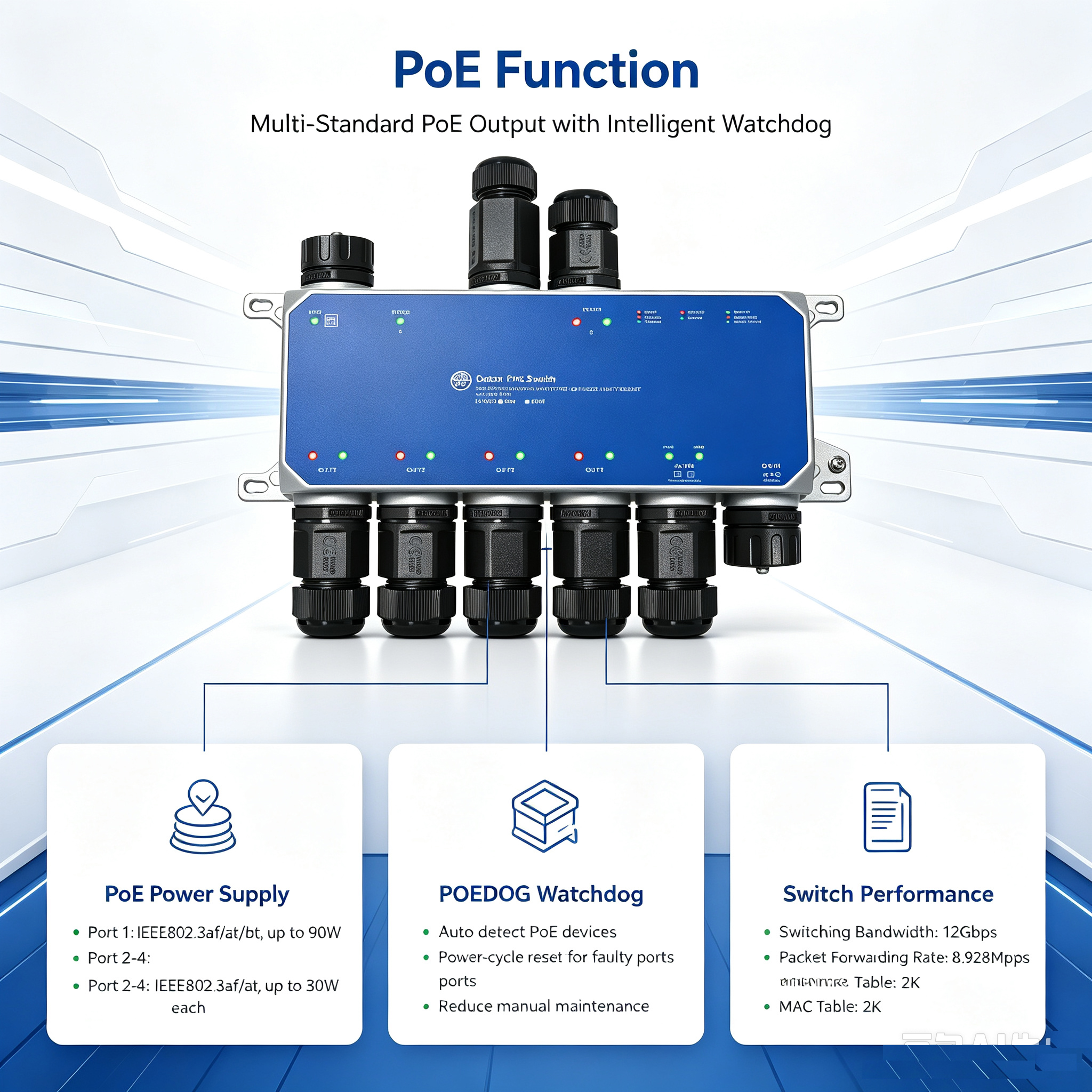

PoE Output

Port1: IEEE802.3af/at/bt, max 90WPort24: IEEE802.3af/at, max 30W

PoE Pinout

Bt:12+,45+,36,78; Af/at:12+,36

Functions

Port Isolation, Longdistance transmission, POEDOG, FIBERDOG

Switch Bandwidth

12 Gbps

Packet Forwarding Rate

8.928 Mpps

MAC Address Table

2 K

Packet Buffer

2 M

UTP Transmission Distance

10BASET ≤250 m;100BASETX ≤150 m;1000BASETX ≤100 m

SFP Fiber Distance

Max ≤120 km (depends on optical module)

LED Indicators

POE out, PoEport LAN link, Uplink LAN link & 1G SPEED, POEDOG, ACIN, DCIN

Power Supply

AC:100240Vac 5060Hz 1.0A Max 155WDCIN:DC1257V(noPoE max5W); DC4457V(PoE max180W)

Operating Condition

40～+80℃, 5%90%RH Noncoagulation

Storage Condition

40～+90℃,5%95%RH Noncoagulation

Dimension(LWH)

Main body:25515048mm; Packing:30526563mm

Weight

N.W:1.12kg; G.W:1.38kg

Lightning Protection

6KV 8/20us

Installation

Desktop, Wall mounting

Certificates

CEEMC EN55032, CELVD EN62368, FCC Part15 Class B, RoHS

Warranty

1 Year for whole device (accessories excluded)
