EXT101XGTP

802.3bt Max 90w 10Gbps POE extender

Compliant with IEEE 802.3af / at / bt PoE standard, maximum PoE output power up to 90W
10 Gigabit Ethernet support, backward compatible with 10G/5G/2.5G/1G/100M/10Mbps network rates
Wide operating temperature: 40℃ ~ 75℃
6KV (8/20μs) lightning & surge protection for stable outdoor operation
Multiple LED status indicators: PWR, PoE IN, LAN link speed, PoE OUT
Flexible installation: wall mount or desktop placement
Nylon waterproof cable connectors, applicable for network cable diameter Φ4 8mm
Dual power input modes: PoE IN or external DC 48 57V input (max 120W)

EXT101XGTP Overview

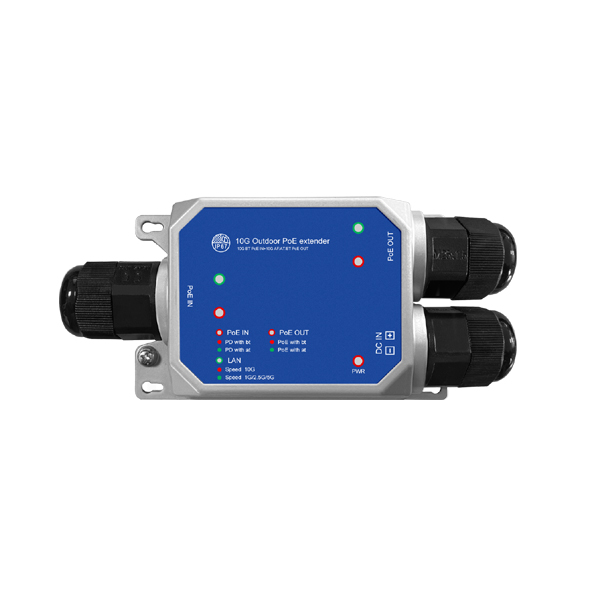

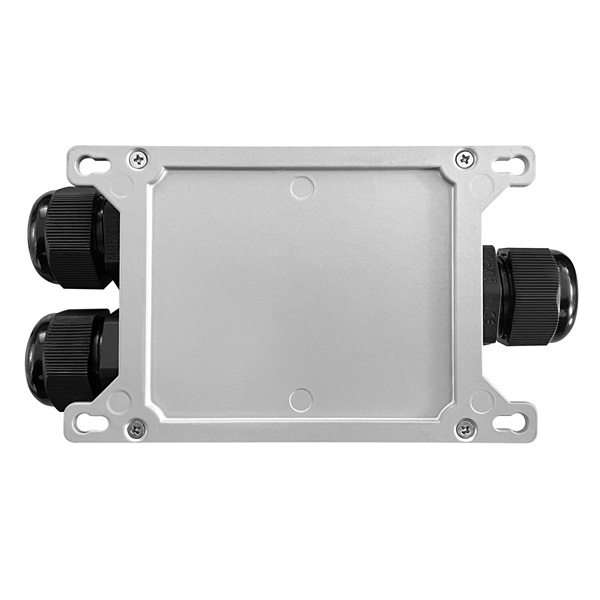

The EXT101XGTP is an IP67 outdoor grade 10G PoE extender built with die cast aluminum housing, designed to extend both Ethernet data and PoE power transmission for outdoor surveillance, wireless AP and other industrial network deployments. It supports IEEE 802.3af/at/bt PoE output up to 90 W, and full rate 10 Gigabit backward compatible network speeds. It works in a wide temperature range from 40 °C to 75 °C, equipped with 6 KV lightning surge protection and waterproof cable connectors, suitable for harsh outdoor environments. It can be wall mounted or desktop placed for flexible on site installation.

EXT101XGTP Specification

Model	EXT101XGTP
Product Name	10 Gigabit PoE Waterproof Extender
Port	110G/5G/2.5G/1G/100M/10M RJ45 port 110G/5G/2.5G/1G/100M/10M RJ45 PoE OUT port 1*2P DC IN
PoE OUT	Supports IEEE802.3af/at/bt MAX 90W
PoE OUT Pin	12 45+；36 78-
Transmission Distance	10BASE-T: Cat 3, 4, or 5 UTP (≤250m) 100BASE-T: Cat 5 or later UTP (≤150m) 1000BASE-T: Cat 5 or later UTP (≤150m) 2500BASE-T: Cat 6 or later UTP (≤120m) 5000BASE-T: Cat 6 or laterr UTP (≤100m) 10000BASE-T: Cat 6 or later UTP (≤100m)
LED	PWR: Power indicator PoE In: PD LED (green IEEE802.3af/at, orange IEEE802.3bt) LAN: Link LED (green 1G/2.5G/5G Link LED, orange 10G Link LED) PoE out: PoE LED (green IEEE802.3af/at, orange IEEE802.3bt)
Usage Environment	Operating Temperature: -40℃~75℃ Storage Temperature:-40℃～80℃ Operating humidity:10%～90%, non-condensing Storage humidity: 5%～90%, non-condensing
Input Method	DC48-57V IN MAX 120W
Size (LWH)	Product size:1707743mmm Package size:21010357mm
N.W./G.W (kg)	0.37kg/0.47kg
Lightning/surge protection level	6KV 8/20us；
Material	Aluminum die-casting body Nylon waterproof connector
Waterproof level	IP67
Installation Cable Diameter	Φ of 4-8mm network cable
Installation	Desktop/Wall Mount
Warranty	1 year warranty for the whole machine (excluding accessories)
