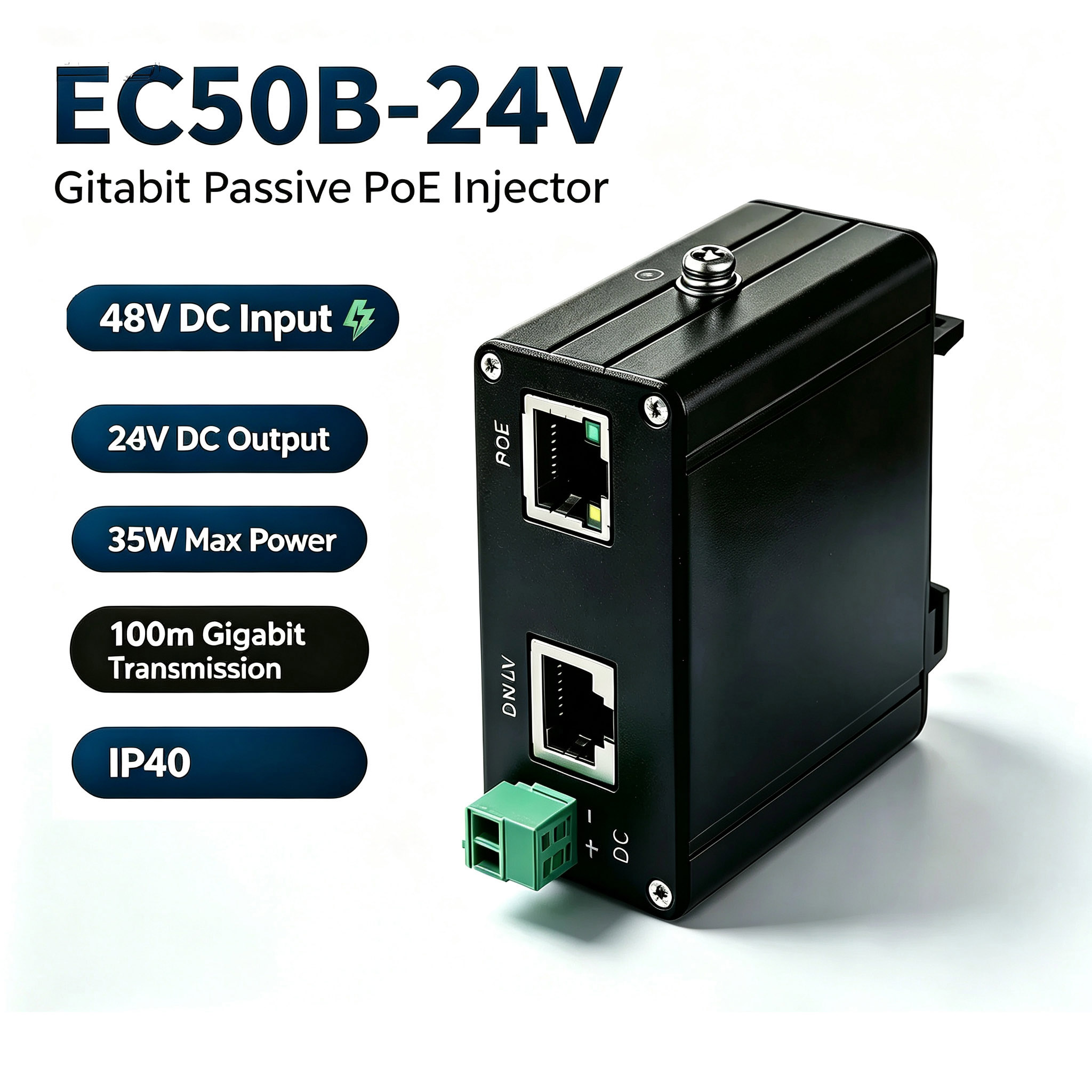

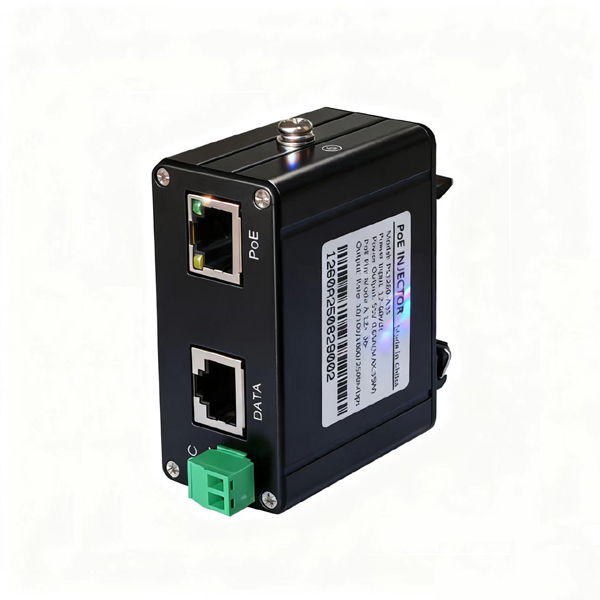

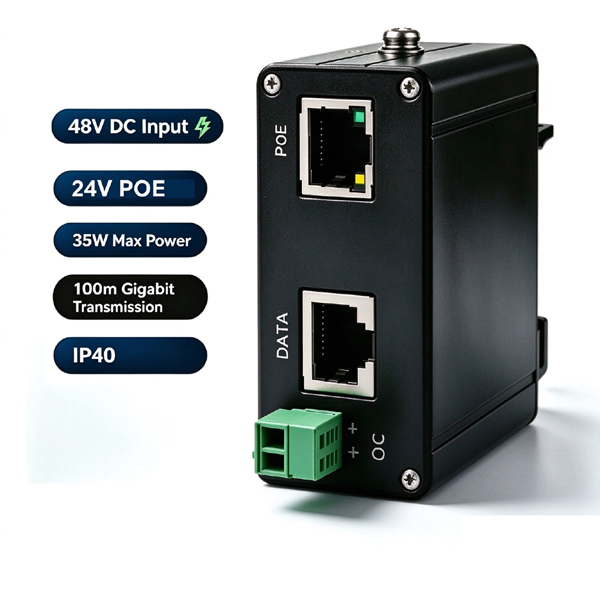

EC50B-24V

Gigabit 48VDC input industrial DIN 24V POE injector

 44Vdc-57Vdc input
24V 35W POE output
 IP40 rated Gigabit max 24V/35w POE Injector
 Extreme -30 to 75 °C operating temperature range
DIN RAIL or desktop installation
 Overcurrent protection

EC50B-24V Overview

The MINI industrial passive POE injector series is a 1G/2.5Gbps Ethernet buck boost integrated power supply product developed specifically for industrial PoE application scenarios; This series of products comes standard with 2 10/100/1000/2500Mbps adaptive RJ45 ports, covering various types of interfaces such as standard PoE and non-standard PoE outputs, making it flexible and convenient to use; Adopting DIN installation method, combined with high reliability components and hardware structure design, the product is more suitable for industrial scenarios with harsh operating environments and high reliability requirements.

EC50B-24V Specification

Model	EC50B-24V
Port	1RJ4510/100/1000M Data IN
	1RJ4510/100/1000M Data+PoE OUT
	1* DC IN (2P) power terminals
Standard	IEEE 802.3 IEEE 802.3u IEEE 802.3ab
DC IN	DC(2P)：48-57V
PoE Output	24Vdc passive POE, max 35W；
Data Pin	1234,5678
PoE Out	Pin: 12+，36- or 45+78-
Indicator	Power ON Indicator
Indicator	PoE ON Indicator
Transmission	10Base-T: two pairs of Cat3 or latter UTP/STP(≤250m) 100Base-TX: two pairs of Cat5 or latter UTP/STP(≤150m) 1000Base-T: for pairs of Cat5e or latter UTP/STP(≤100m)
Features	Plug and play without more configuration management Reliability：MTBF＞100k hours
Lightning Protection	6KV 8/20us；6KV ESD protection
Protect grade	IP40
Operation Environment	Operation Temperature：-30℃～75℃ Storage Temperature：-40℃～85℃
Operation Environment	Operation Humidity：10%～90% RH Non coagulation Storage Humidity：5%～90% RH Non coagulation
Product Size	547032mm（bracket not included）
Package size	908050mm
Weight	220g
Warranty	1 year

EC50B-24V

Gigabit 48VDC input industrial DIN 24V POE injector
