EC350D Overview

The EC350D series are 1G/2.5Gbps boost ethernet power supply injector developed specifically for PoE application scenarios; This series of products comes standard with 2 10/100/1000/2500Mbps adaptive POE ports, making it flexible and convenient to use; Adopting wall or DIN installation methods, combined with high reliability components and hardware structure design, the product is more suitable for industrial scenarios with harsh operating environments and high reliability requirements.

1. Simplified wiring, fewer power outlets required

Only one power supply line needs to be routed to the PoE injector. Neither the router nor the camera requires a separate local AC power outlet. It is ideal for poles, rooftops, exterior walls and remote areas of parks, where it is often difficult to install 220V power sockets. This is its biggest highlight.

2. Stable performance with industrial power supply

Matched with DIN-rail industrial power supply, it delivers steady voltage with wide AC input range (usually 100~240V). It can resist surge interference and is more reliable than ordinary home adapters for outdoor, construction and factory environments, supporting 7×24-hour continuous operation.

3. Standard 802.3at PoE+ (up to 30W)

It supports protocol negotiation to avoid damaging devices. It can power both low-power wireless AP and IP cameras simultaneously, with good compatibility for most standard PoE cameras and outdoor access points.

4. Flexible retrofitting, no need to replace existing devices

There is no need to change your router or purchase a PoE switch. It is cost-effective for scattered points, later additions and temporary projects for single-site deployment, plug-and-play and easy commissioning.

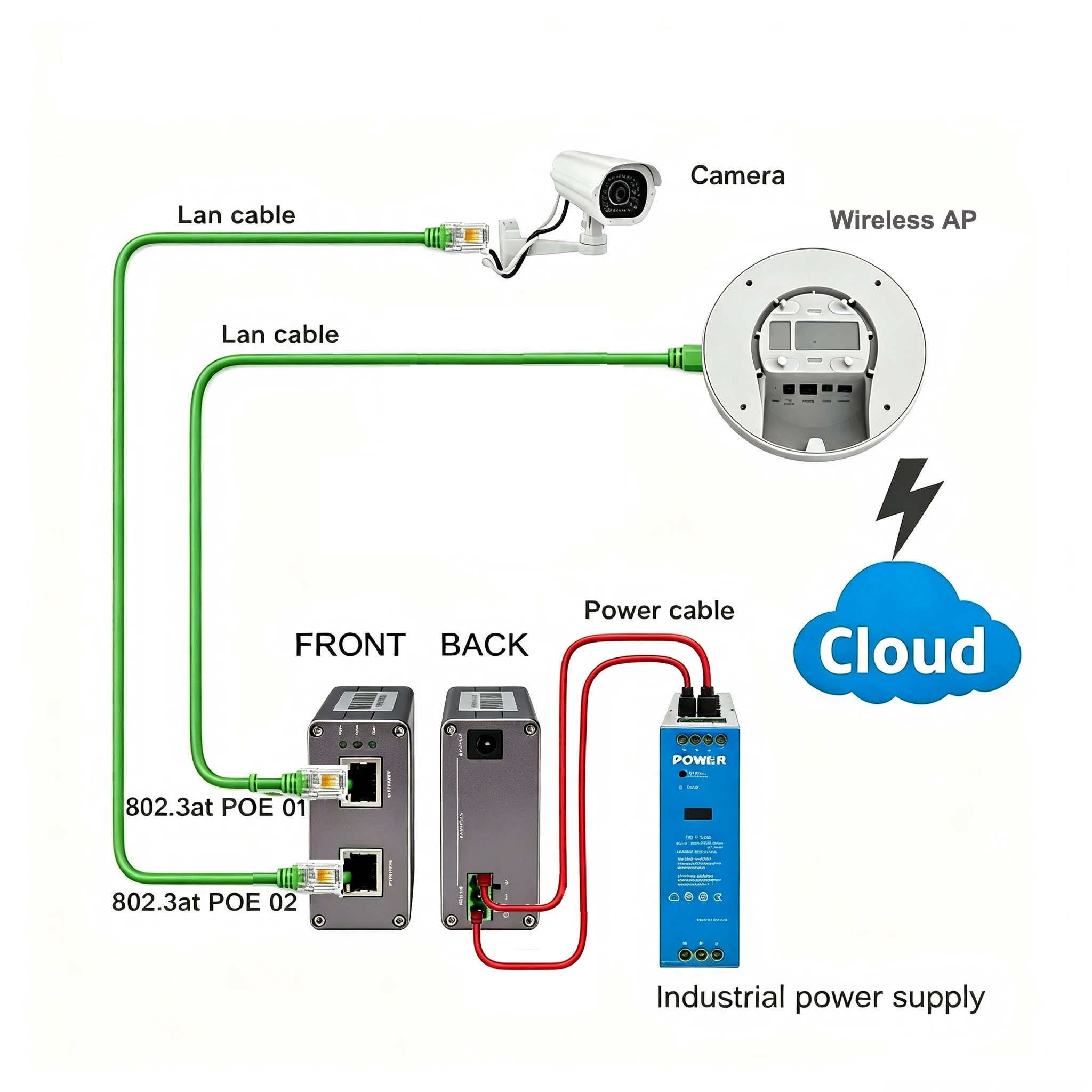

5. All-in-one site solution: wireless coverage + surveillance

One single location achieves both Wi-Fi coverage and video monitoring. Perfect for park corners, parking lots, farms and remote construction sites. One cable run handles two functions, which is the differentiated selling point of this solution.

EC350D Specification

Product Model	EC350D-B(at)	EC350D-A(at)
Hardware Configuration
Interface Type	210/100/1000Mbps RJ45 PoE OUT 1DC IN(3P) terminal block 1*DC2.0 power input	210/100/1000/2500Mbps RJ45 PoE OUT 1DC IN(3P) terminal block 1*DC2.0 power input

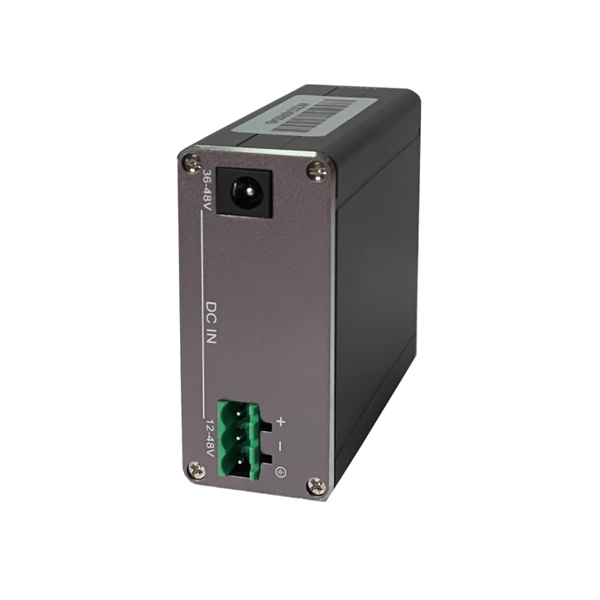

DC IN	DC2.0: 36-48V/5A(MAX) 5.08mm_3P terminal block: 12-48V/10A(MAX)
PoE Standard	IEEE802.3at
	Class 4
PoE Power	MAX：30W(IEEE802.3at)
PoE PIN	PIN: 12+,36-
PoE Output	IEEE802.3at: 48Vdc
Network Protocol	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
	IEEE802.3u 100Base-TX; IEEE802.3x;	IEEE802.3u 100Base-TX; IEEE802.3x;
	IEEE802.3ab 1000Base-T;	IEEE802.3ab 1000Base-T;
		IEEE802.3bz 2.5GBase-T;
LED Indicators	PWR(Power)：power indicator
	PoE：PoE on
	DIN：DC power input indicator
Transmission Distance）	PoE:100/1000/2500Mbps 0~100meters（CAT5e,CAT6）
	PoE:10Mbps 0~250meters（CAT5e,CAT6）
Transmission Medium	10BASE-T：Cat3,4,5or higher grade TP cable	10BASE-T ： Cat3,4,5or higher grade TP cable
	100BASE-TX,1000Base-T：Cat5,5e,6or higher grade TP cable	100BASE-TX,1000Base-T：Cat5,5e,6or higher grade TP cable
		2.5GBase-T: Cat5e,6or higher grade TP cable
Operating Temperature	-40℃~+75℃

Storage Temperature	-40℃~+85℃
Relative Humidity	5%~95% （non-condensing）
Thermal Methods	Fanless design, natural heat dissipation
MTBF	100000h
Protect Garde	IP40
EMC	Power Surge：IEC 61000-4-5 4KV/2KV（8/20us）
	Network port Surge：IEC 61000-4-5 4KV/2KV（10/700us）
	ESD：IEC 61000-4-2 8K/15K
Product Size	807032mm
Package Size	12010059mm
Installation Method	DIN or wall mounted
Weight	0.3KG
Enclosure	POE injector，manual and accessories
	power adapter（not include）
Package info	80PCS/CTN，510430320mm，25kgs/CTN
Warranty	1 year

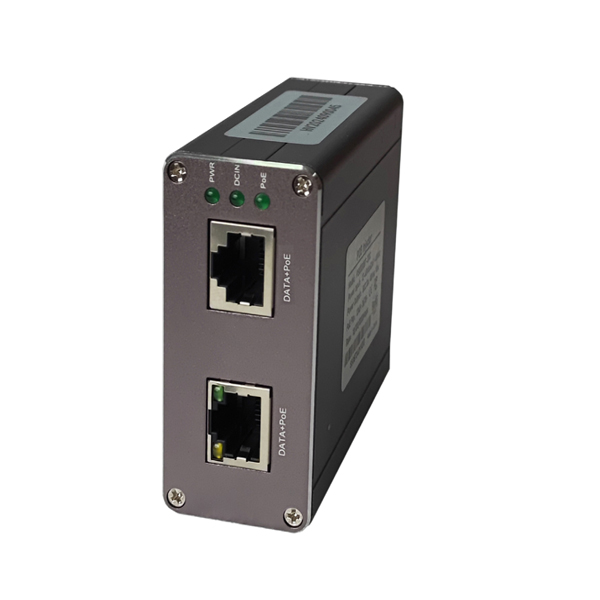

EC350D

2 Ports POE output injector
