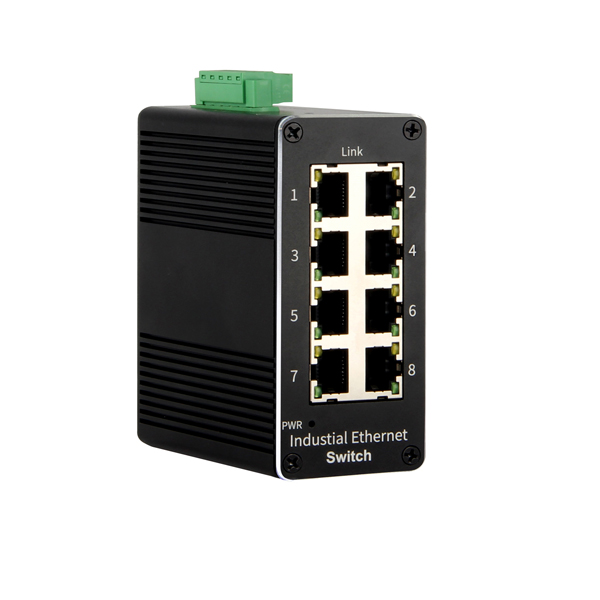

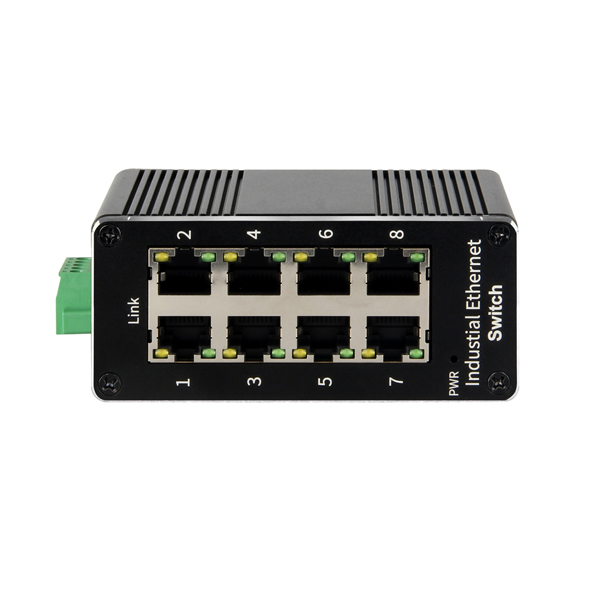

NEU-IB8F

8-port Fast unmanaged Industrial Ethernet Switch

The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
Using high-performance chips and the latest industrial design
Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
Supports redundant DC 9-52V wide voltage and reverse connection protection.
The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃
Long service life
Din-rail installation (in the control cabinet or directly on the automation equipment).
Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level.

NEU-IB8F Overview

NEU-IB8F is a converging integrated industrial Ethernet unmanaged switch independently developed by our company. This product is mainly developed for the application of point-to-point networks, star networks, tree networks and chain networks in the industrial field. It supports 8-port 10/100Base-TX. This product has a high-performance switching engine, a wavy aluminum alloy shell with an IP40 protection level, a fanless design and an efficient heat dissipation surface, and over-current, over-voltage and EMC protection for the loading power input port. The RJ45 port is equipped with excellent EMC protection performance, so that the series of products can adapt to harsh and dangerous industrial environments. Therefore, it can provide reliable and convenient solutions for users’ Ethernet equipment networking.

NEU-IB8F Specification

Product Introduction
Model No.	NEU-IB8F
Product description	8-port Fast unmanaged Industrial Ethernet Switch
Port Description	8-port RJ45 connector
Ethernet interface
RJ45 Ports	10/100BaseT(X), Automatic detection, Full/half duplex MDI/MDI-x adaptive
Standards
Network Protocols	IEEE802.3 10BASE-T; 100BASE-T IEEE802.3i 10Base-T; IEEE802.3u; IEEE802.3x;
Twisted Pair	10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter)
Switch Properties
Processing Type:	Store and Forward
MAC Table Size	2K
Packet Buffer Size	1Mbit
Bandwidth	1G
Switching Delay	＜10μs
Power Consume	＜3Watts
Power Parameters
Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC9 to 52V redundant dual inputs support reverse connection protection
LED Indicator	Power: Green Link: Green
Physical Characteristics
Enclosure	Wavy aluminum alloy
Protection level	IP40
Dimensions	100x84x44mm （length x width x height)
Weigh	0.4kg
Installation	Push-in DIN rail
Environmental Limits
Operating Temperature	-40～75℃ （-40～185 °F）
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS	IEC(EN)61000-4-2(ESD):±8kV Contact,±8kV indirect，±15kV Air discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±4kV CM/±2kV DM; data:±6kV CM/±4kV DM IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5 years
Package Contents
Device	1 x NEU-IB8F switch
Documentation	1 x quick installation guide 1 x warranty card
