A-XGT-POE-48V-OT

IP67 waterproof outdoor 10Gbe POE Surge protector

• Compatible with CAT6, CAT6a and CAT7 cables
• Fully compliant with IEEE 802.3af / at / bt PoE standards
• 10G Base T Ethernet surge protection
• IP67 waterproof rating for outdoor deployment
• Hybrid multi stage protection circuit: Gas Discharge Tube (GDT) + TVS technology
• Dual common mode & differential mode surge protection
• Low capacitance TVS array design, preserves high speed signal quality
• Multi strike surge withstand capability

A-XGT-POE-48V-OT Overview

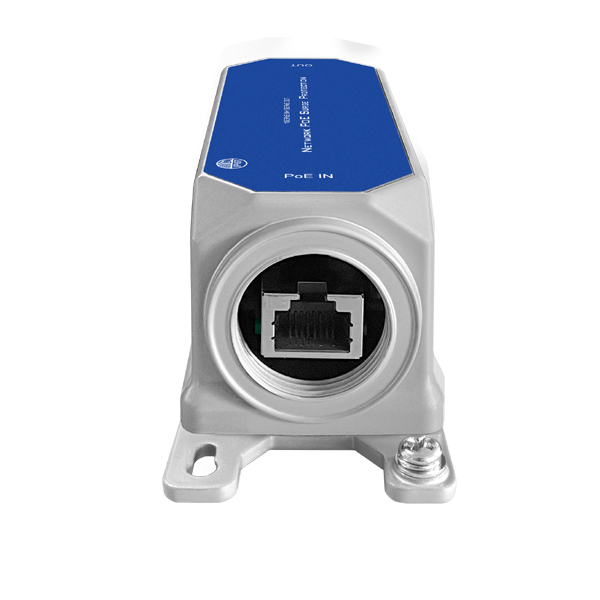

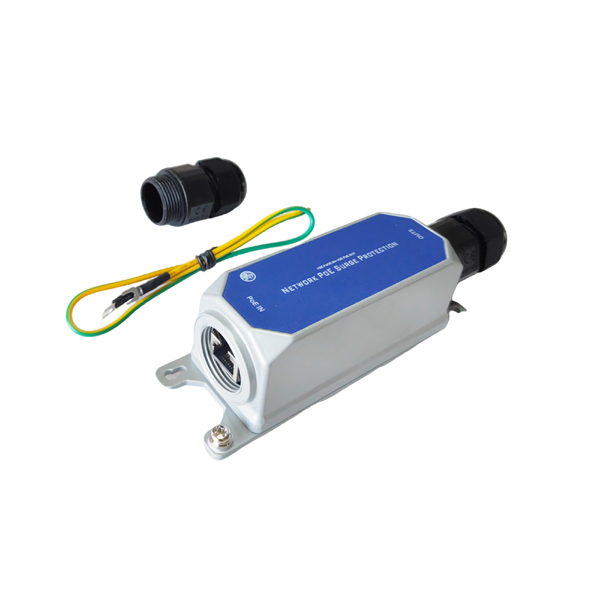

The A XGT POE 48V OT is an IP67 rated outdoor grade surge protector designed for 10G Base T PoE Ethernet systems. It adopts hybrid Gas Tube and TVS multi stage protection architecture, delivering both common mode and differential mode surge suppression. This unit supports full IEEE 802.3af/at/bt PoE power pass through and is compatible with CAT6, CAT6a and CAT7 high speed network cables. With low capacitance TVS array design, it maintains excellent signal integrity for 10 Gigabit Ethernet while protecting outdoor PoE powered equipment (such as IP cameras) against lightning surge, over voltage and ESD threats. Die cast aluminum housing together with nylon waterproof glands ensures reliable performance in harsh outdoor environmental conditions.

A-XGT-POE-48V-OT Specification

Model	A-XGT-POE-48V-OT
Product name	Surge protector
material	Aluminum die-casting body Nylon waterproof joint
Waterproof grade	IP67
Wire diameter	Support network cables with diameter Φ of 4-8mm
Transmission rate Vs	110/100/1G/2.5G/10G Base-TX in 110/100/1G/2.5G/10G Base-TX out
Lightning Protection:	10KA (8/20 us), 20KV (8/20 us)
ESD Protection	30KV (Air), 30KV (Contact)
PoE	Supports IEEE802.3af/at/bt， through surge protector
Protective wire pair	2 pairs (1-2, 3-6)		2 pairs (4-5, 7-8)
Rated working voltage Un	Network：5V; Power 48V
Maximum continuous operating voltage Uc	Network：24V; Power 60V
Maximum discharge current max (8/20μs)	1-2	0.3KA	3-6	0.3KA
	4-5	0.3KA	7-8	0.3KA
	1、2、3、6、4、5、7、8-PE	10KA	1、2、3、6、4、5、7、8-PE	10KA
	SE-PE	5KA	SE-PE	5KA
Limiting voltage Up 10/700/ms	1-2	＜20V	4-5	＜110V
	3-6	＜20V	7-8	＜110V
Insulation resistance M Ω	≥0.4
Insertion loss dB	≤0.5
Near end crosstalk dB	≥60 (PASS)
Response time Ta	≤lns
Operating Temperature/Humidity	-40～+80°C；5%～90% RH Non coagulation
Storage Temperature/Humidity	-40～+90°C；5%～95% RH Non coagulation
Product /Packing size（LWH）	823525mm 1154326mm
N.W/G.W（kg）	0.08kg/0.09kg
Installation	Desktop, wall installation
Certificate	CE-EMC EN55032；CE-LVD EN62368； FCC Part 15 Class B；RoHS；
Warranty	Whole device for 1 year(Accessories not included)
